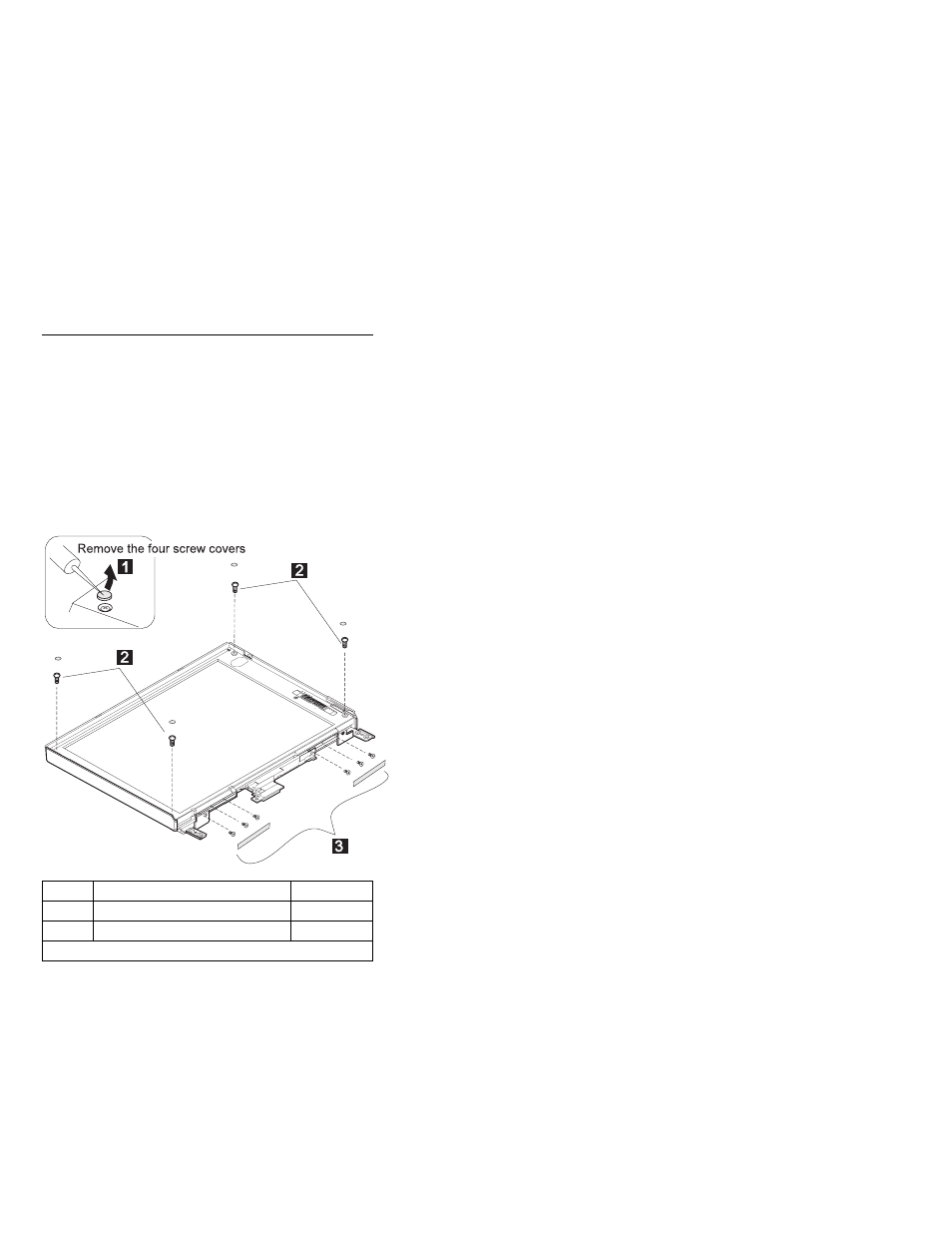

LCD Unit, 12.1 SVGA (P/N 29H9226,
ASM P/N 29H9029)

1010 LCD Cover

Notes:

1. Be careful not to scratch the LCD cover when

removing the screw covers

1

.

2. The LCD cover has several latches. Release these

latches; then remove the LCD cover. Be careful not
to break the latches.

Step

Length (Quantity)

Memo

2

M2.5 x 8 mm (4)

3

M2 x 4.3 mm (6)

Flat head

Note: Make sure you use the correct screw when replacing.

ThinkPad 760 (9546, 9547)
