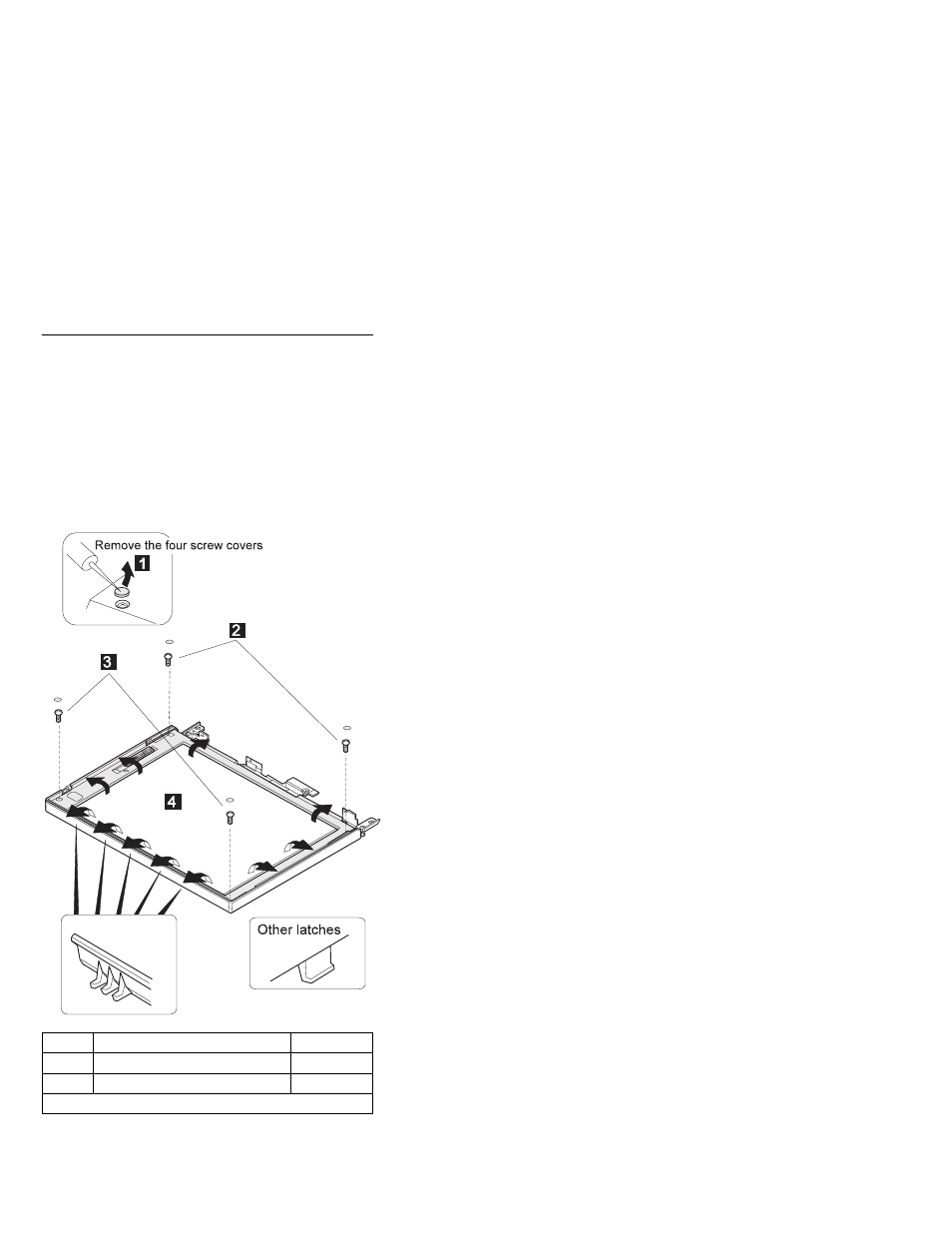

LCD Unit, 12.1 XGA

P/N 46H5735, ASM P/N 46H5731

6010 LCD Cover

Notes:

1. Be careful not to scratch the LCD cover when

removing the screw covers

1

.

2. The LCD cover has several latches. Release these

latches; then remove the LCD cover. Be careful not
to break the latches.

Lift the LCD front cover a bit; then remove the microphone
cable.

Step

Length (Quantity)

Memo

2

M2.5 x 9 mm (2)

3

M2.5 x 6 mm (2)

Note: Make sure you use the correct screw when replacing.

ThinkPad 760 (9546, 9547)

317
