2040 lcd misc. parts, Hinges/latches dstn lcd – IBM THINKPAD S05L-1270-01 User Manual
Page 108
2040 LCD Misc. Parts
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
LCD Front Cover (2010)
LCD Panel (2020)
LCD Inverter Card (2030)

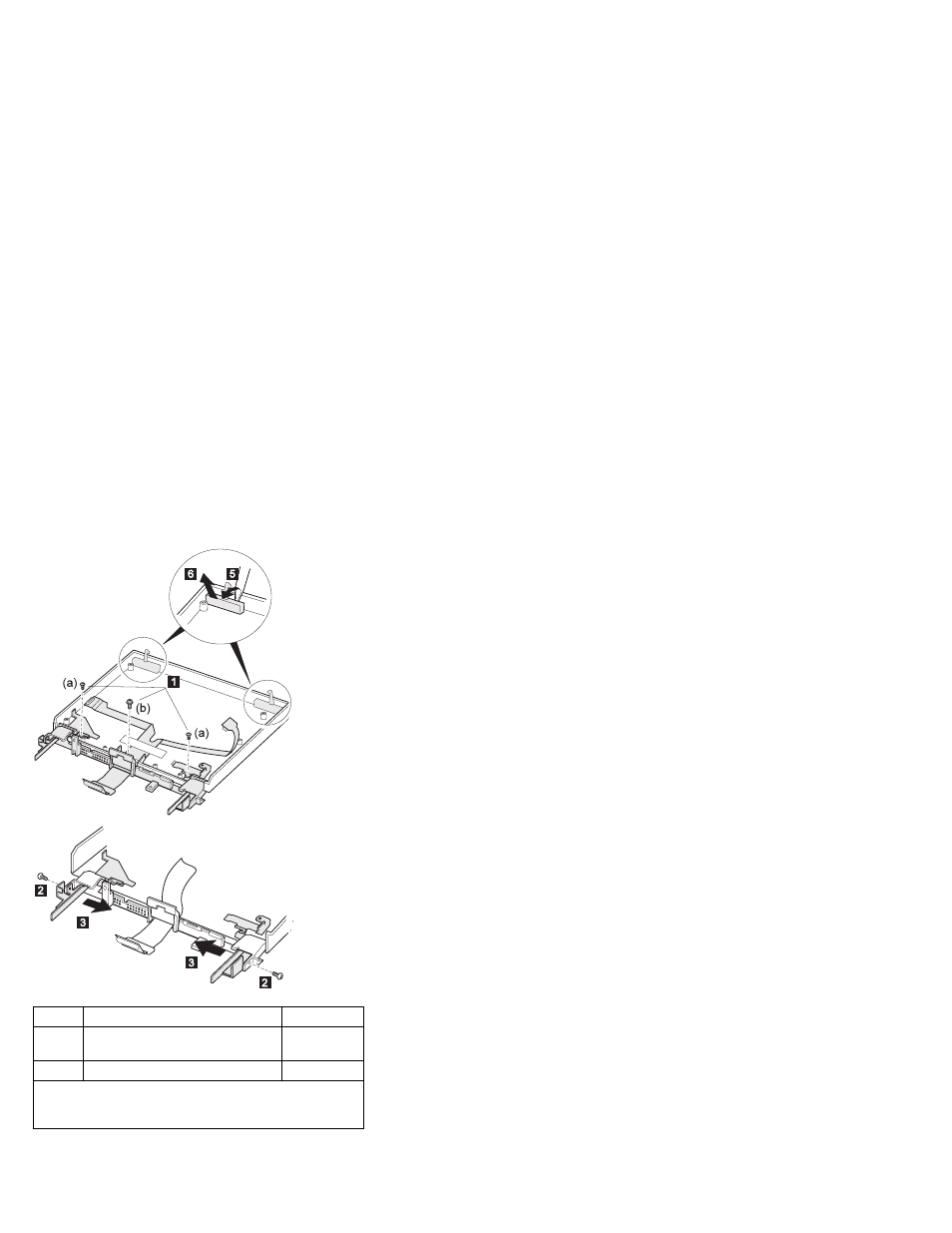

Hinges/Latches DSTN LCD
1 2 3 4
: Hinges
5 6
: Latches
Step
Size (Quantity)
Torque
1
(a) M 2.5 x 6mm (2)
(b) M 2.5 x 6mm, Special head (1)
4 kgcm
2
M 2.5 x 6mm (2)
4 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
96
IBM Mobile Systems HMM
