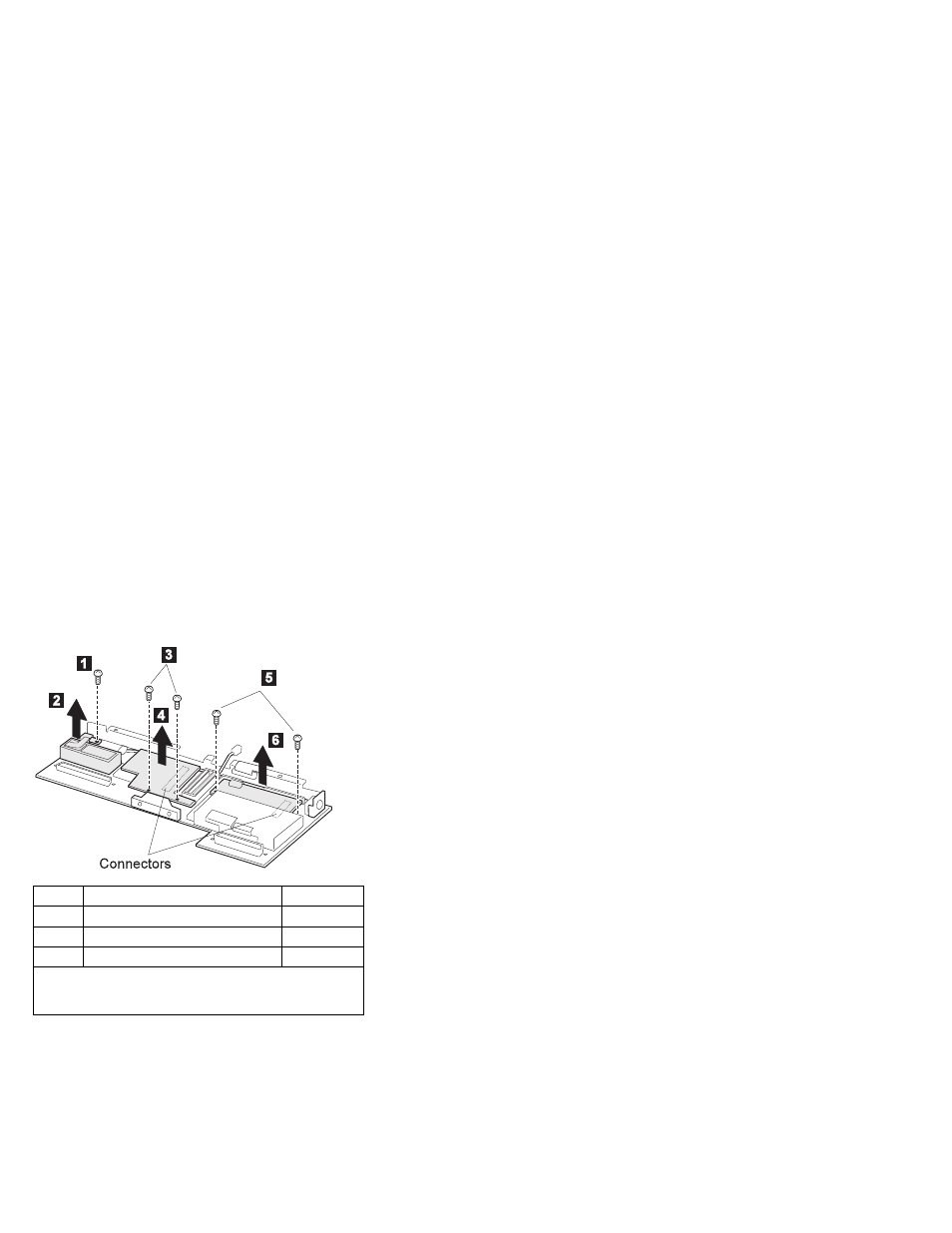

1160 Modem Holder, DC/DC Card,
Inverter Card

Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Front IR and Rear IR (1090)
System Board Assembly (1110)
Upper Shield (1120)
External FDD Connector (1130)
Video Card (1140)

1 2

: Module Jack

3 4

: DC/DC Card

5 6

: Inverter Card

Step

Size (quantity)

Torque

M2.5 x 14 mm, Nylon (1)

4 kgcm

M2.5 x 4 mm, Nylon (2)

4 kgcm

M2.5 x 6 mm, Nylon (2)

3.5 kgcm

Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.

478

IBM Mobile Systems HMM
