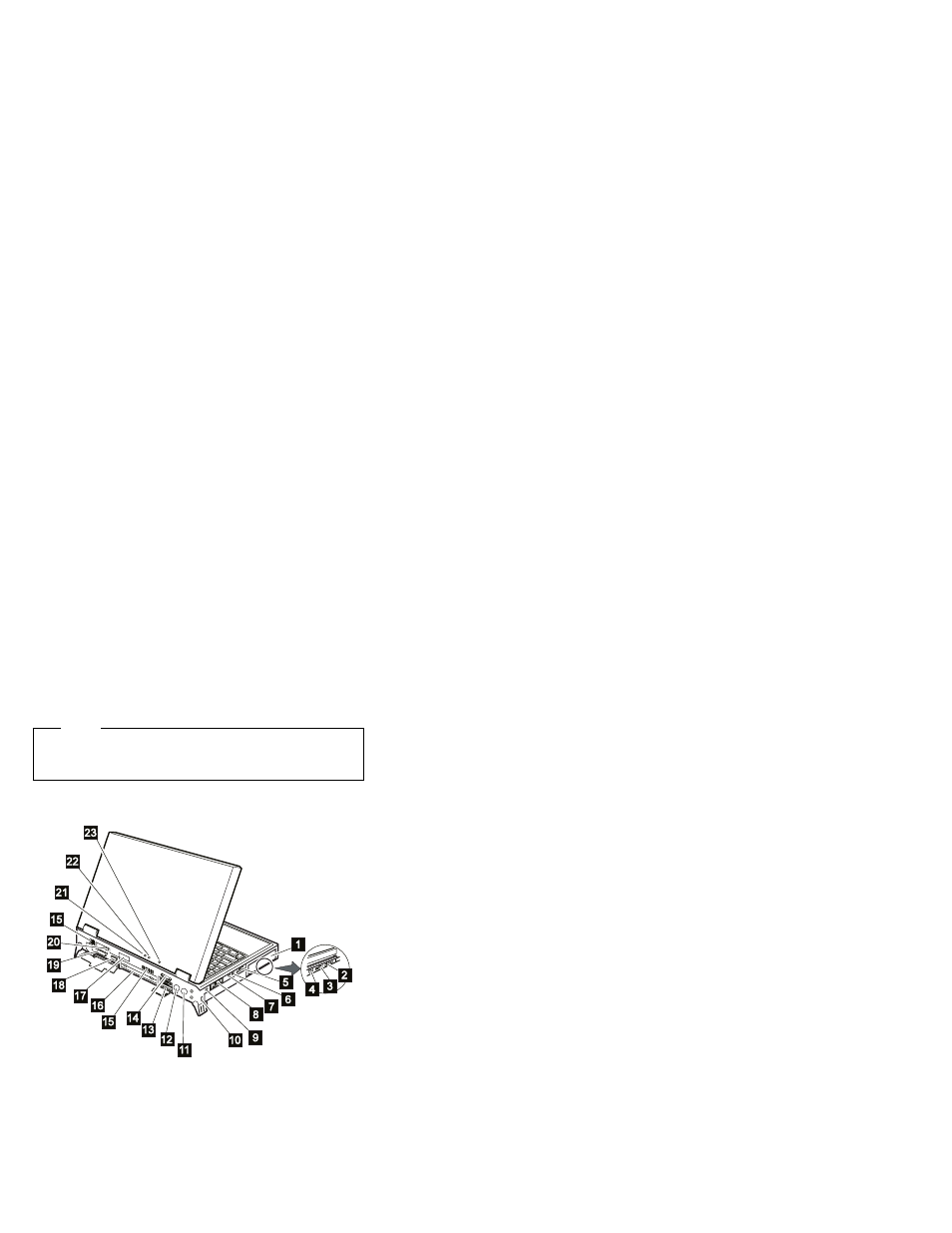

Rear View
1 Battery pack
2 Video in port
3 Video out port
4 Dolby Digital Output port
5 Volume control
6 Microphone/line-in jack
7 Headphone jack
8 Power switch
9 Reset switch
1 Security keyhole
11 AC power jack
12 External input device port
13 Serial port
14 Universal serial (USB) port
15 Fan louvers
16 System expansion port
17 Rear infrared port
18 External display port
19 Parallel port
2 External diskette drive
21 Power-on indicator
22 Suspend indicator
23 Charge indicator
Note
If the DVD and Enhanced Video Adapter is used, 1 ,
2 , 3 are available.
