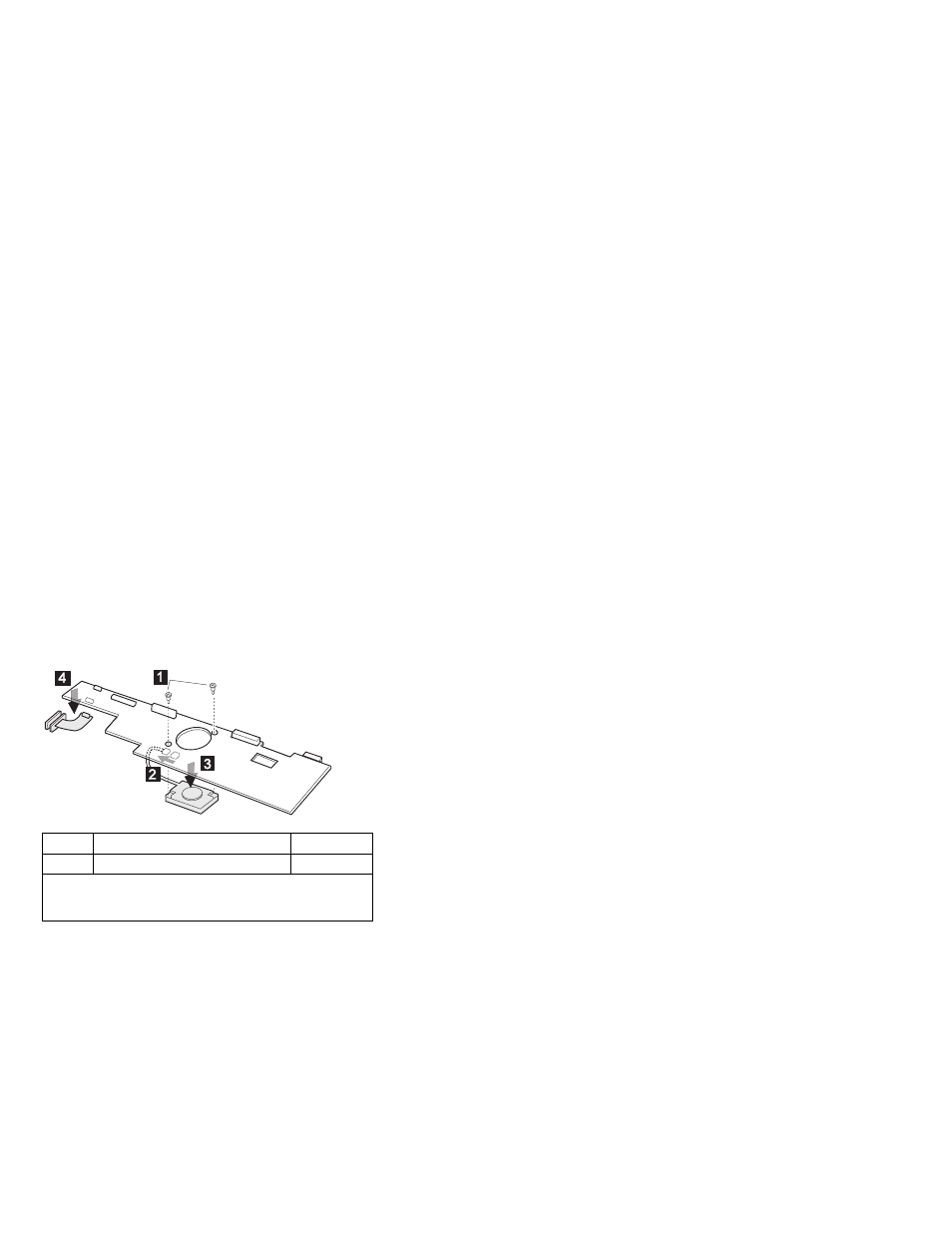

1150 Fan and Video Cable
(765D-Unique)

Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Front IR and Rear IR (1090)
System Board Assembly (1110)
Upper Shield (1120)
External FDD Connector (1130)
Video Card (1140)

Note: Be careful not to touch the fan rotor when

assembling or disassembling.

1 2 3

: Fan

: Video Cable (765D unique)

Step

Size (quantity)

Torque

Screw Fan, P/N 46H5766 (2)

4 kgcm

Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.

ThinkPad 765D (9546), 765L (9547)

477
