1130 external fdd connector – IBM THINKPAD S05L-1270-01 User Manual
Page 486

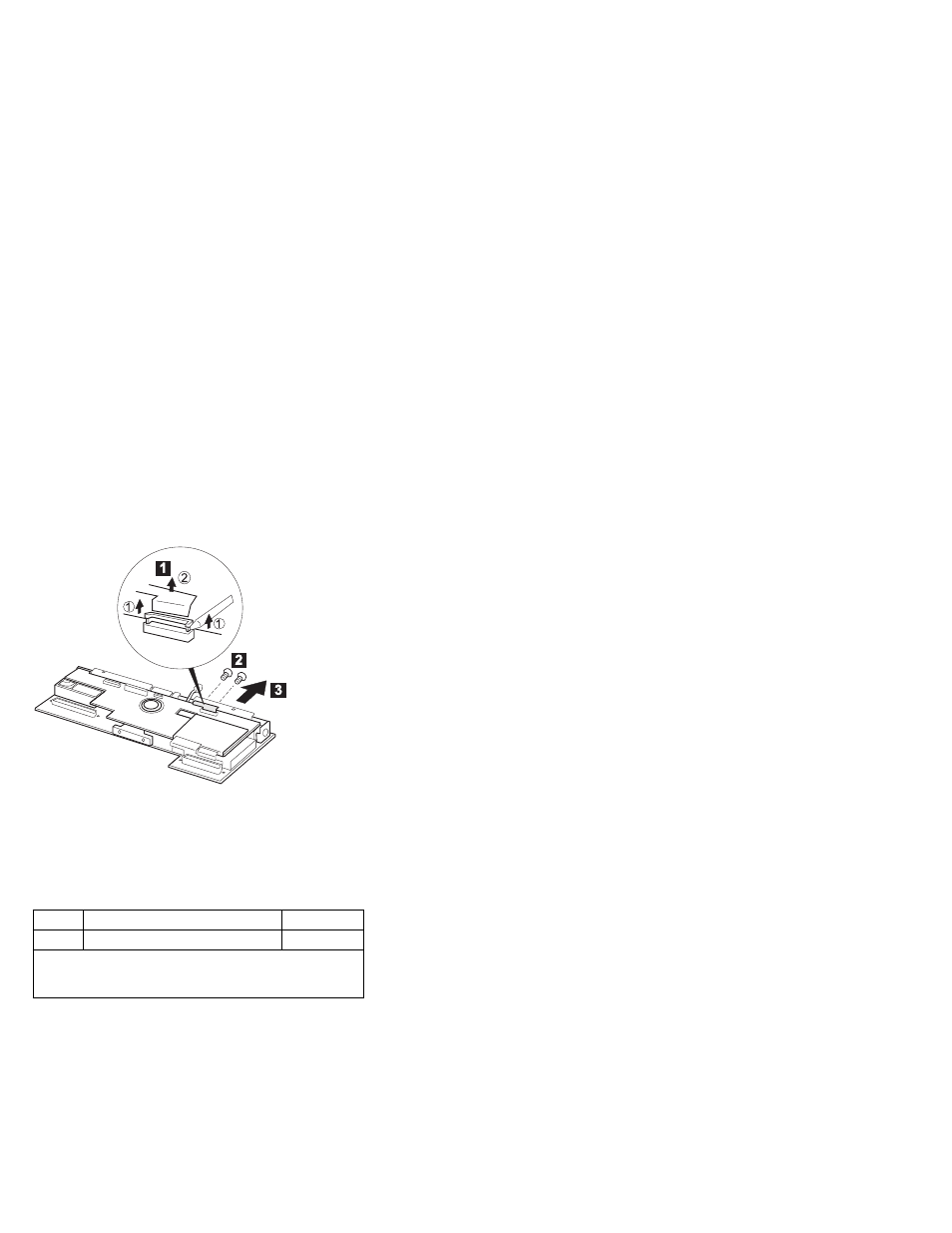

1130 External FDD Connector
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Front IR and Rear IR (1090)
System Board Assembly (1110)
Upper Shield (1120)
When replacing:
Insert the flexible cable straight until the white line
aligns with the edge of the connector.
Be careful not to damage the edge of the
flexible cable when inserting it into the
connector.
Step
Size (quantity)
Torque
2
M2.5 x 8 mm (2)
4 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
474
IBM Mobile Systems HMM
