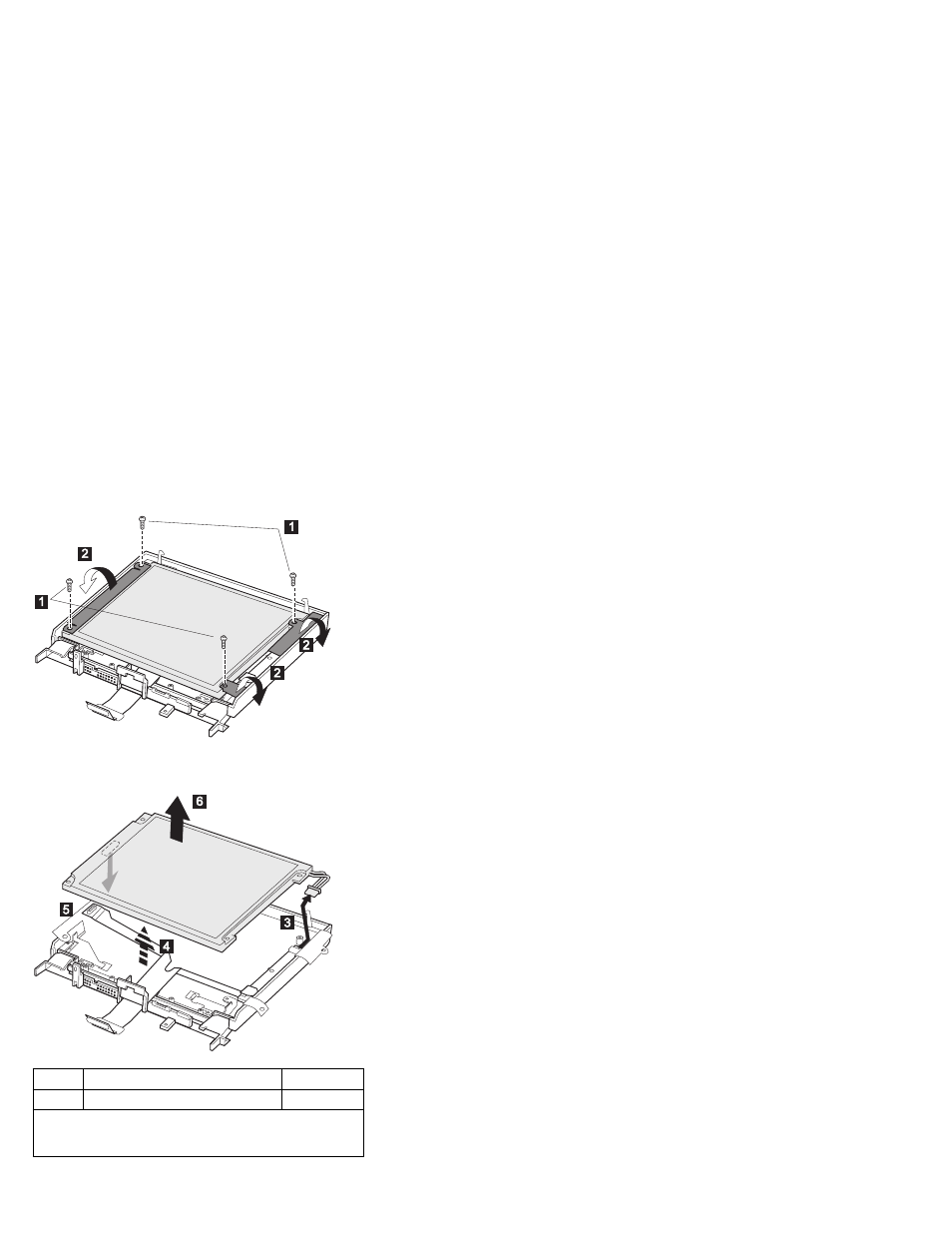

2020 LCD Panel
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
LCD Front Cover (2010)
DSTN LCD Panel
Note: In step
4
, lift the LCD panel a little to disconnect
the flexible cable in step
5
.
Step
Size (Quantity)
Torque
1
M 2.5 x 6mm (4)
4 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
92
IBM Mobile Systems HMM
