IBM THINKPAD S05L-1270-01 - Manual (Page 100)

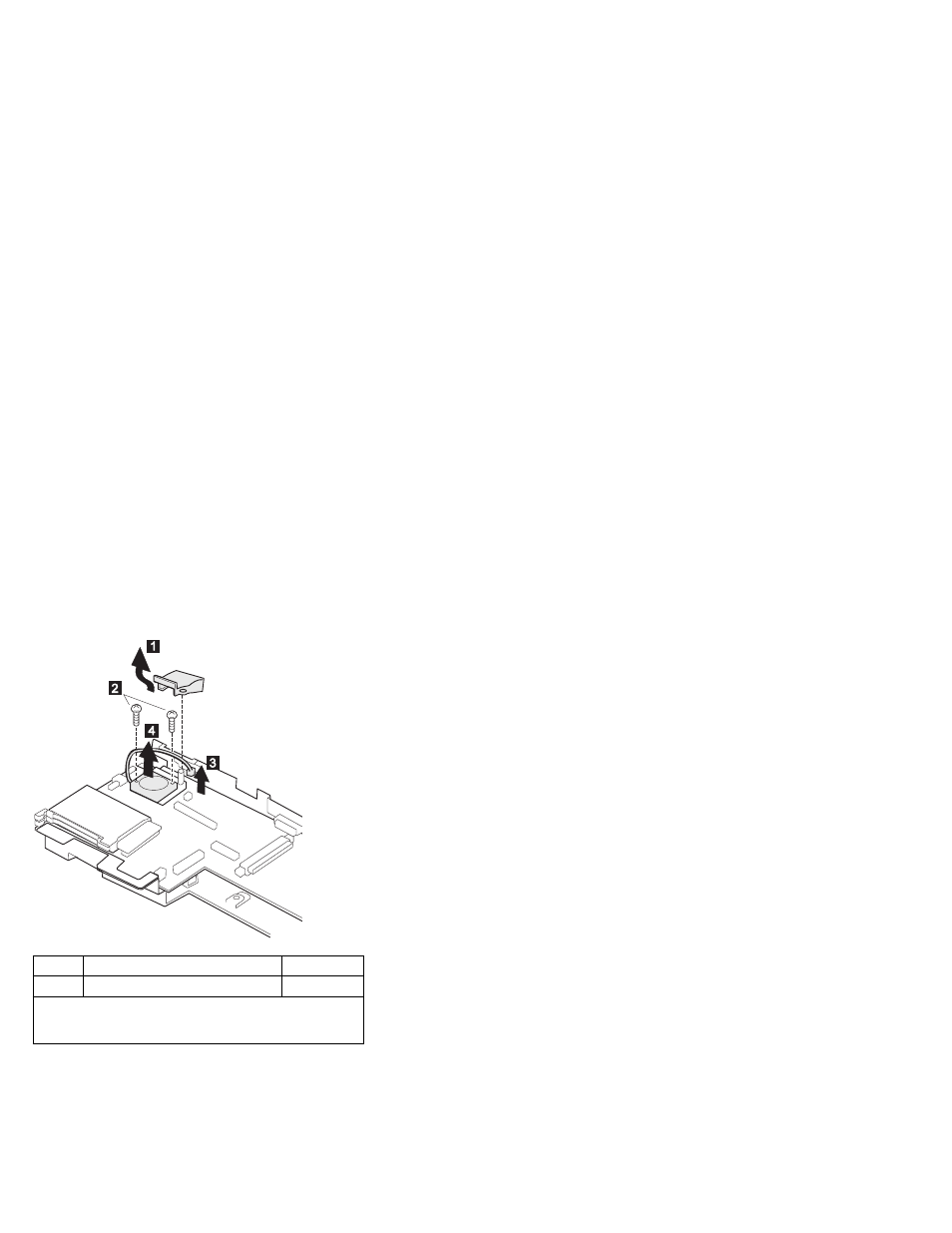

1130 Fan
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
Hard Disk Drive (1060)
System Board Assembly (1080)
Upper Shied Case (1090)
Sub Card (1100)
Notes:
1. Be careful not to touch the rotor and blade of the fan
when assembling or disassembling.
2. Fix the fan cable on the air duct by using the cable
holder when replacing.
Step Size (Quantity) Torque
2 M 2 x 6mm (2) 2.5 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
88 IBM Mobile Systems HMM
