2050 Keyboard Cable
Top Cover (1060)
Keyboard Unit (1070)
Palm Rest (2010)
Palm Rest Rear Cover (2020)
Keyboard Card (2030)
Keyboard (2040)
Notes:
1. When pulling the lever off the foot 1 , separate the
lower part of the lever from the foot by inserting a
pointed device through the hole in the foot.
2. When removing the latch from the keyboard base 1 ,
push both ends of the latch simultaneously.

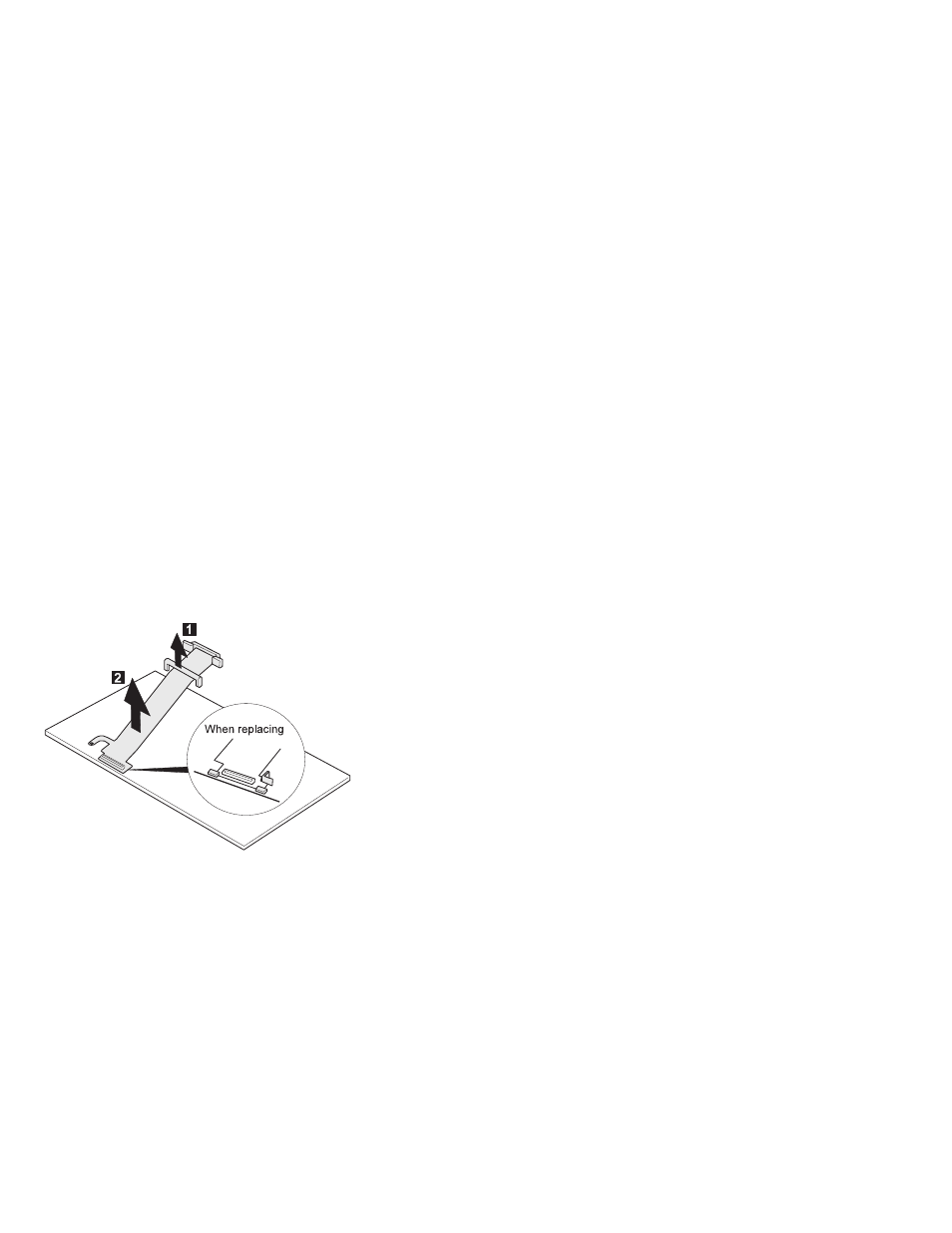

3. When replacing the keyboard cable, place the cable
correctly, as shown by the artwork in the circle.
ThinkPad 765D (9546), 765L (9547) 493
