2040 LCD Cable and Hinges
DIMM (If Installed) (1020)
Battery Pack (1030)
Keyboard Unit (1050)
LCD Assembly (1060)
LCD Front Cover (2010)
LCD Panel (2020)
Inverter Card (DSTN only)(1140)
DSTN
1 2
: LCD cable
3 4
: Hinges

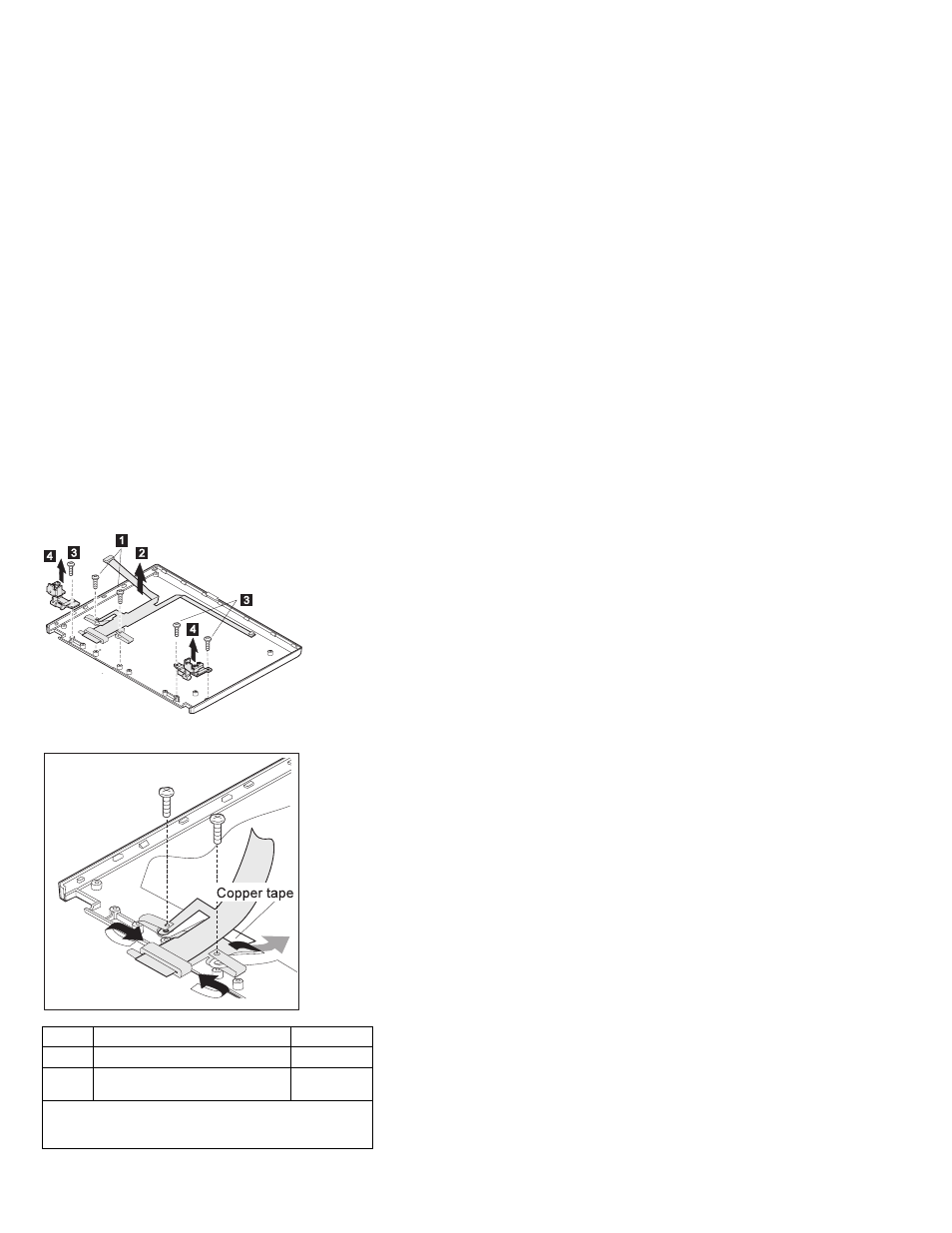

When replacing: see the following figure.
Step
Size (Quantity)
Torque
1
M 2.5 x 6 mm, flathead (2)
3.0 kgcm
3
M 2.5 x 6 mm (3)
flathead
3.0 kgcm
Note: Make sure you use the correct screw and tighten it to
the torque specified. Do not use the screw that you removed,
use a new screw.
ThinkPad 560, 560E (2640)
181
