CRS-300 1:10 Redundancy Switch

Revision 16

Cables and Connections

MN/CRS300.IOM

4–31

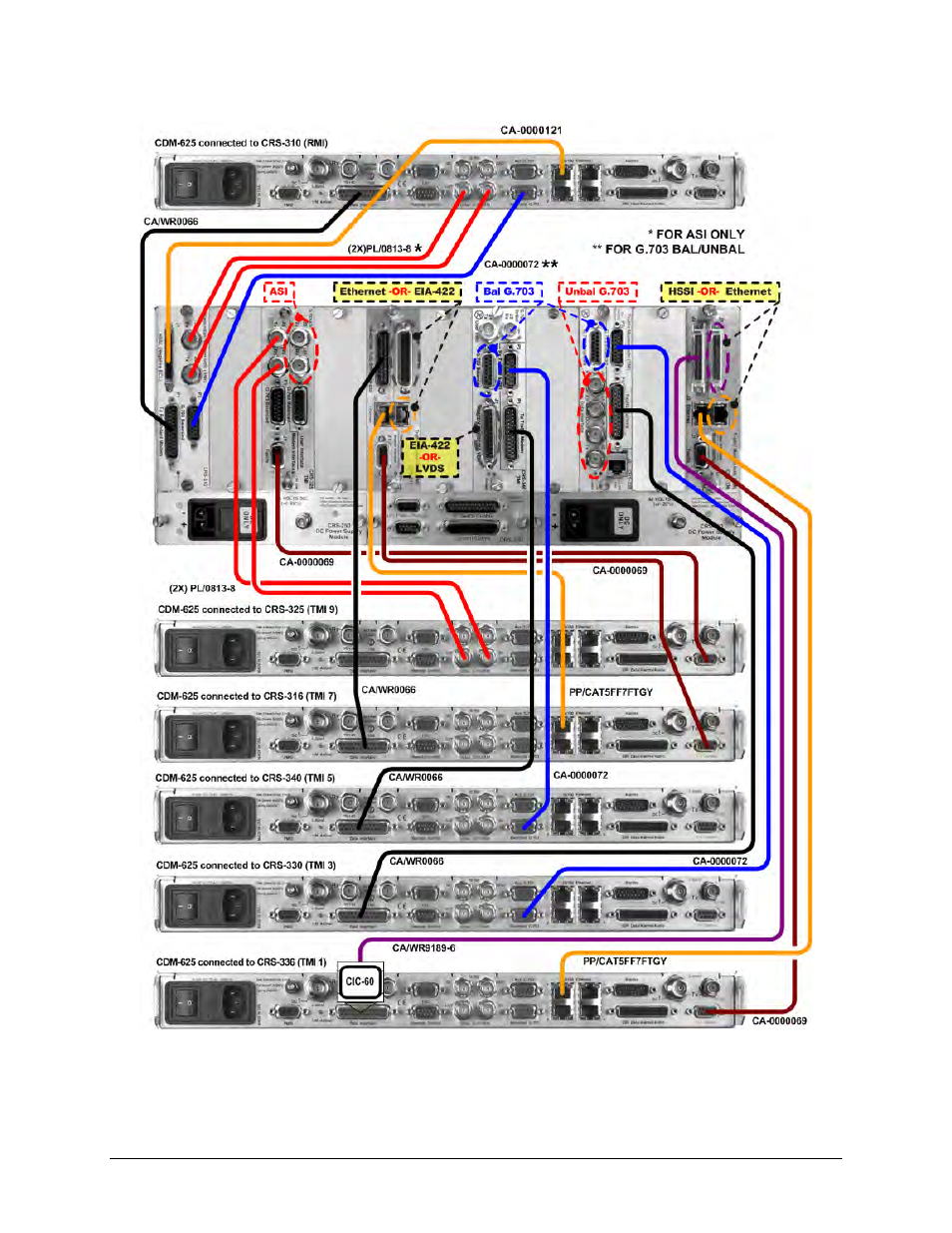

Figure 4-10. CRS-300 to CDM-625 Cable Connection Example – G.703-driven Configuration

(Connections shown for RMI and TMIs 1, 3, 5, 7, and 9 only)
