A.3.4
EIA-485 Null Modem Cable, DB-9 Male

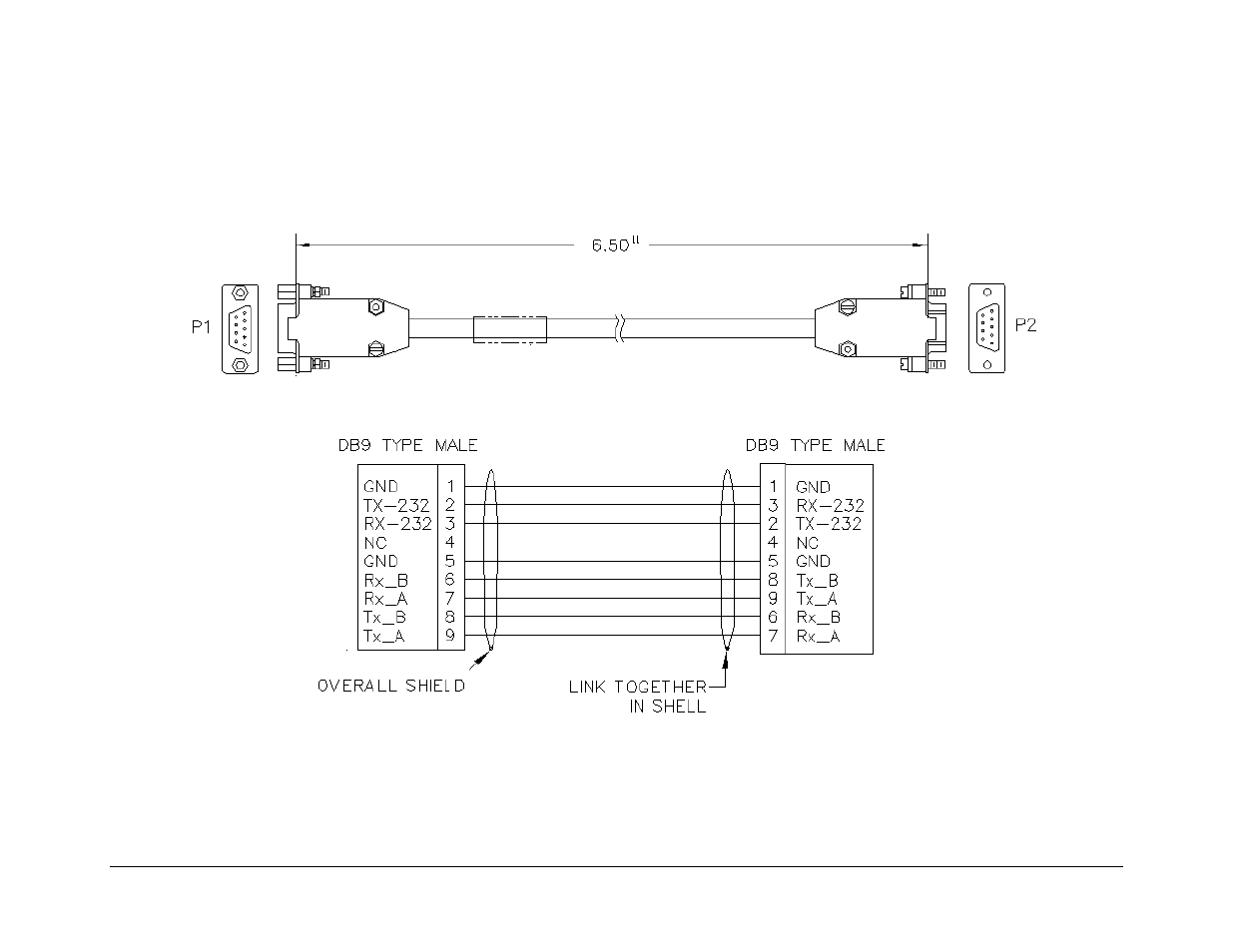

Figure A-7 shows the EIA-485 Null Modem Cable required for the EIA-485 multi-drop for the CDM-Qx / QxL modems. This attaches to
the DB-9F “485 Pass-through” connector on the CRS-230 controller module.
Figure A-7. EIA-485 Null Modem Cable (CA/WR11419-1)
