CRS-300 1:10 Redundancy Switch
Revision 16
Cables and Connections
MN/CRS300.IOM
4–17

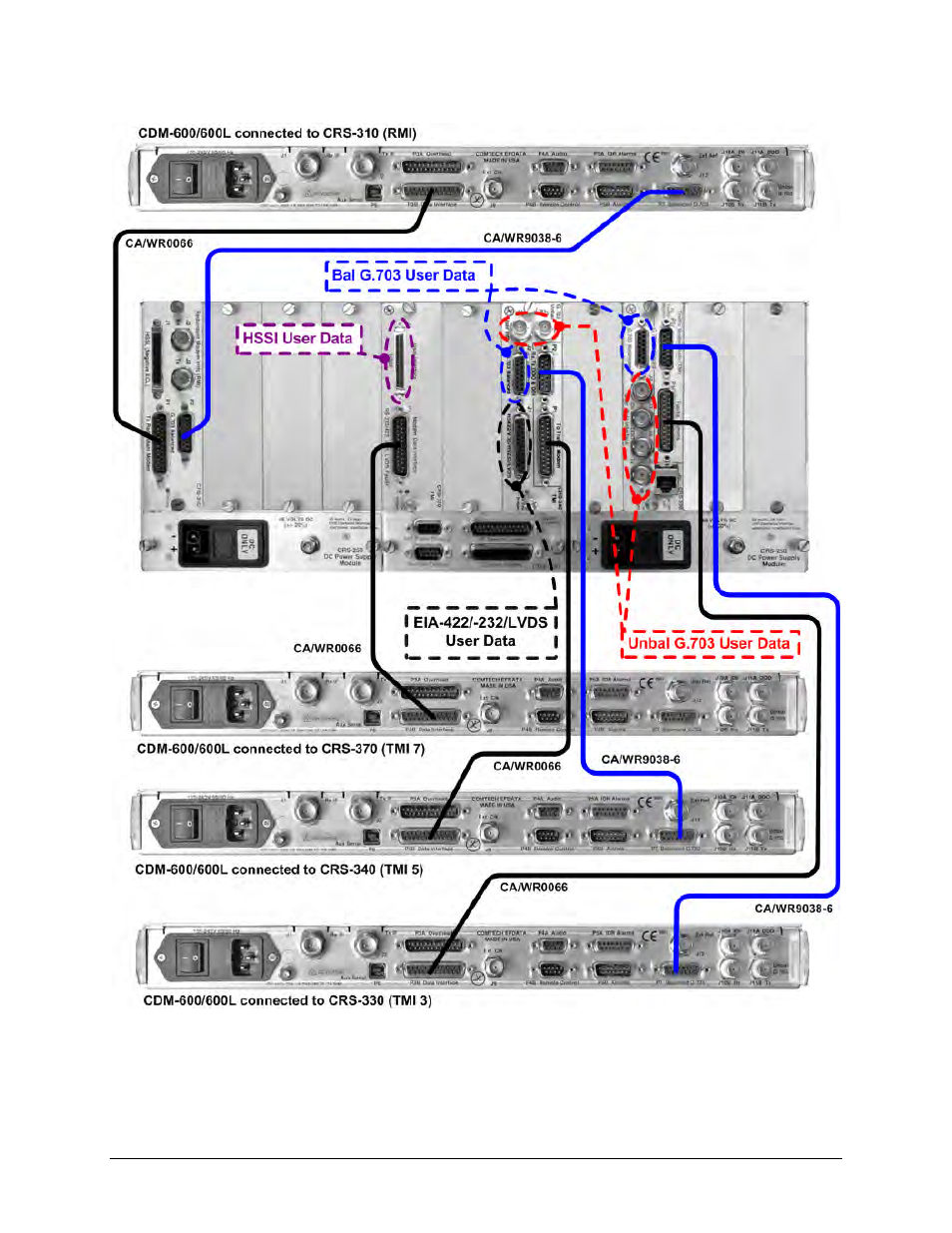

Figure 4-7. Data Cable Connection Example – CRS-300 to CDM-600/600L
(Connections shown for RMI and TMIs 1, 3, 5, and 7 only)
