Cable Drawings
MN/CRS300.IOM
A-4
A.2.3
Switch Programming Cable
Figure A-3 shows the cable required for a simple EIA-232 connection between the CRS-300 remote control port and a PC serial port. This
cable is needed for Flash upgrading.

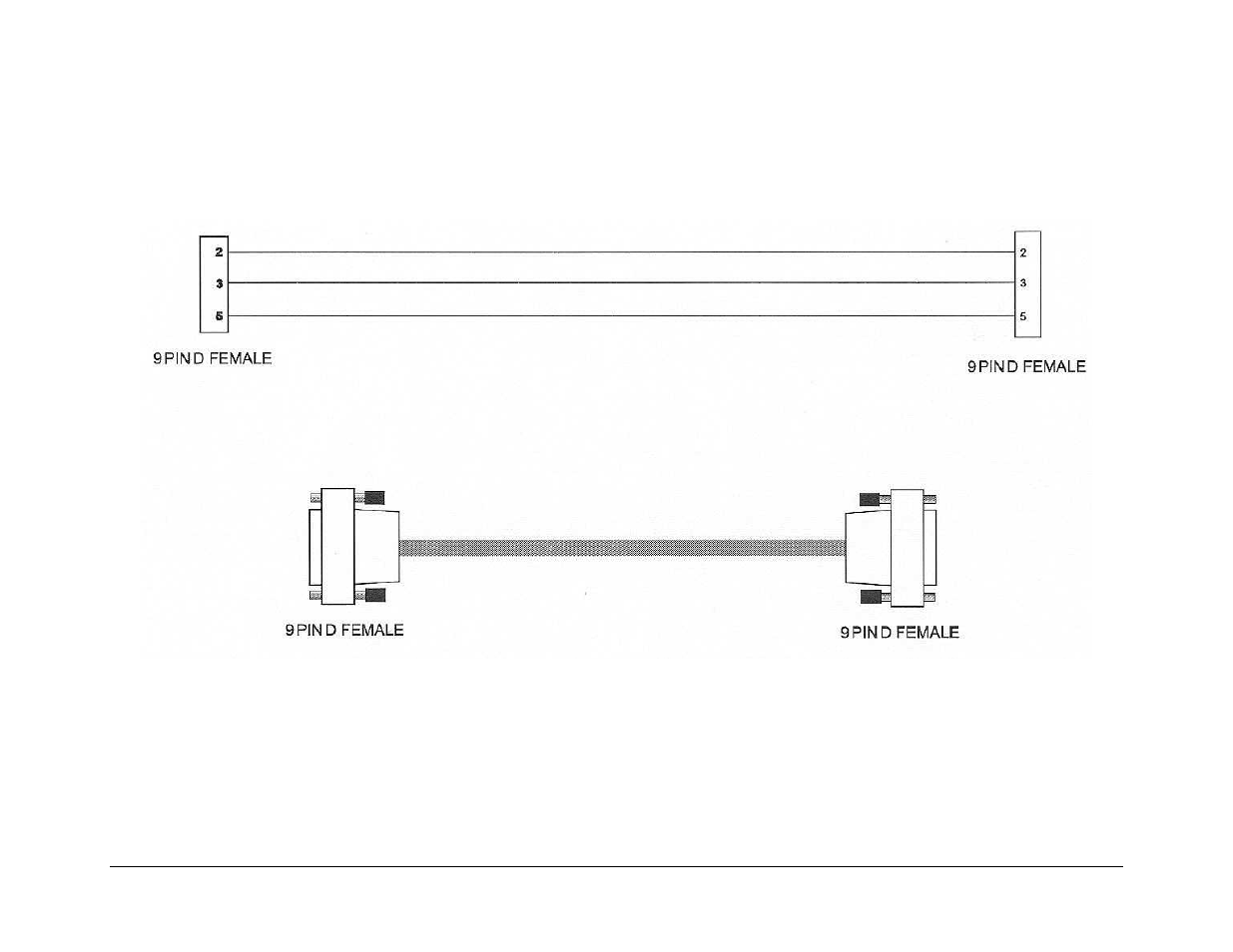

Figure A-3. Switch Programming Cable
