CRS-300 1:10 Redundancy Switch

Revision 16

Cables and Connections

MN/CRS300.IOM

4–54

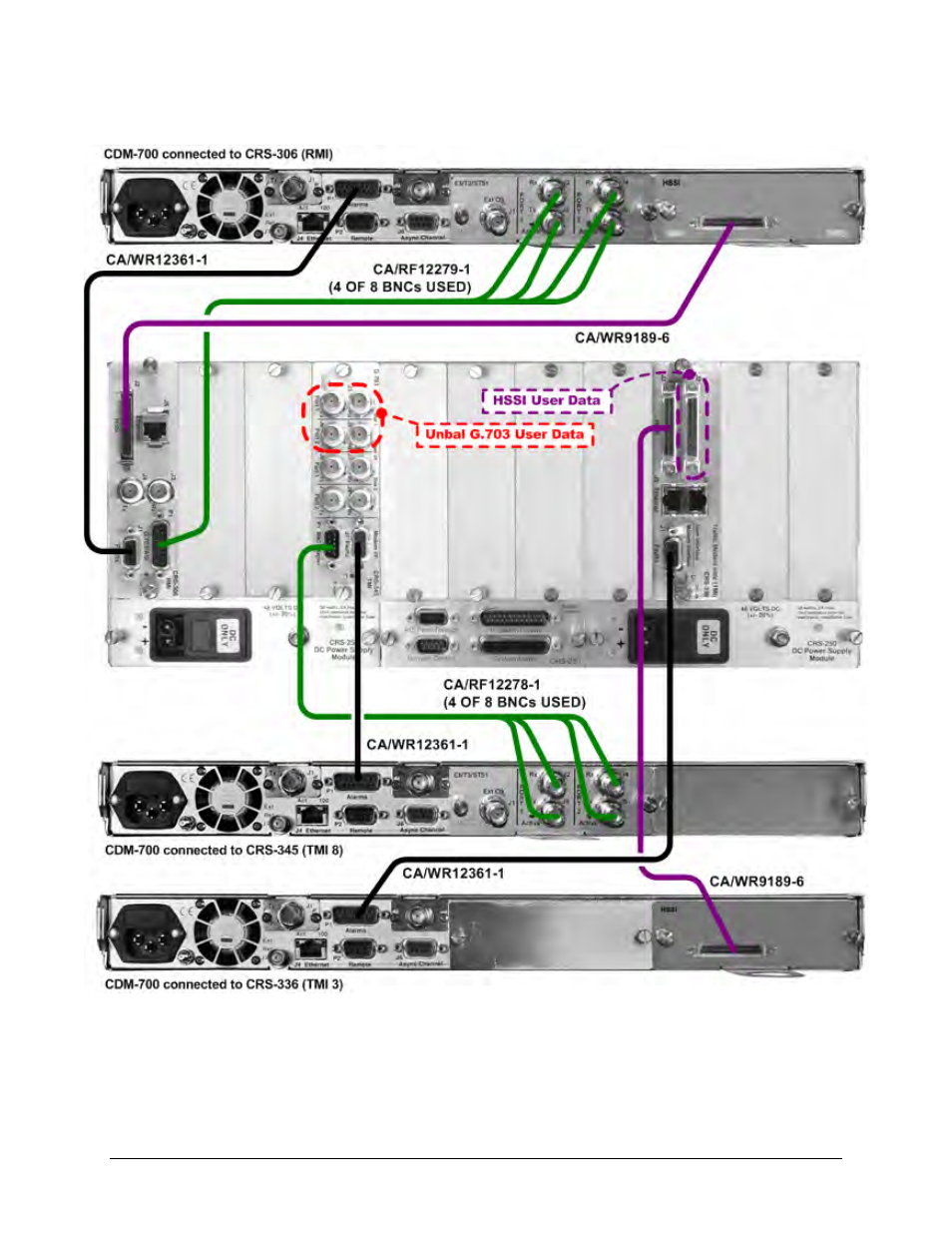

Figure 4-23. Control and Traffic Data Cables Example #2 – CRS-300 to CDM-700

(Connections shown for RMI and TMIs 3 and 8 only)
