A.4.14 IF Cable, BNC 50
Ω
Figure A-26 shows the 50Ω BNC cable used for connecting the Modem to the CRS-280 (70/140 MHz) IF Switch.

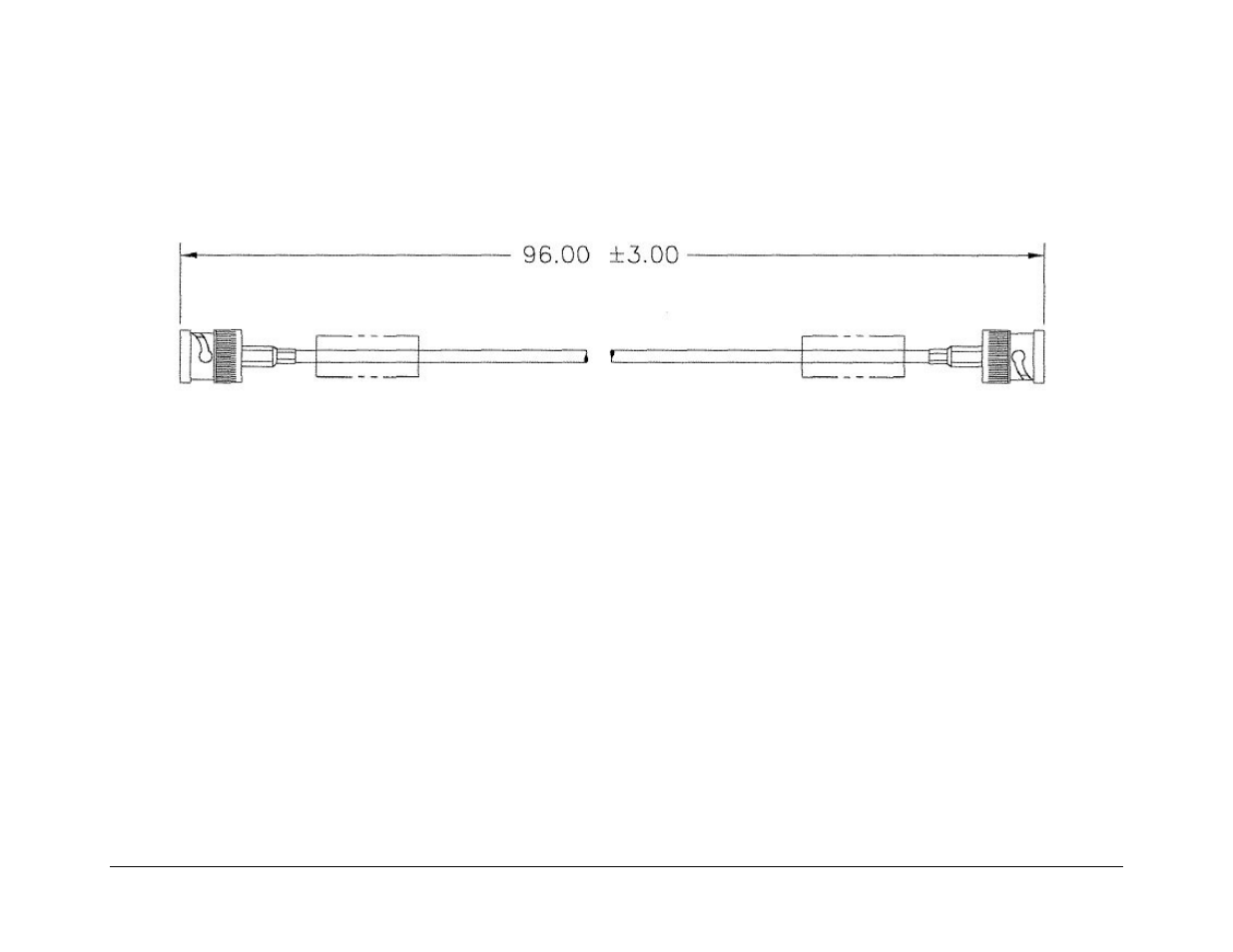

Figure A-26. IF Cable, BNC 50
Ω for CRS-280 (70/140 MHz) IF Switch (PL/0946-2)
