CRS-300 1:10 Redundancy Switch
Revision 16
Cable Drawings
MN/CRS300.IOM
A-22
A.4.6
Quad E1 ‘Y’ Data Cable for CDM-625
Figure A-18 shows the cable assembly used to connect the Quad E1 data between the CRS-310 RMI and the CDM-625 modem.

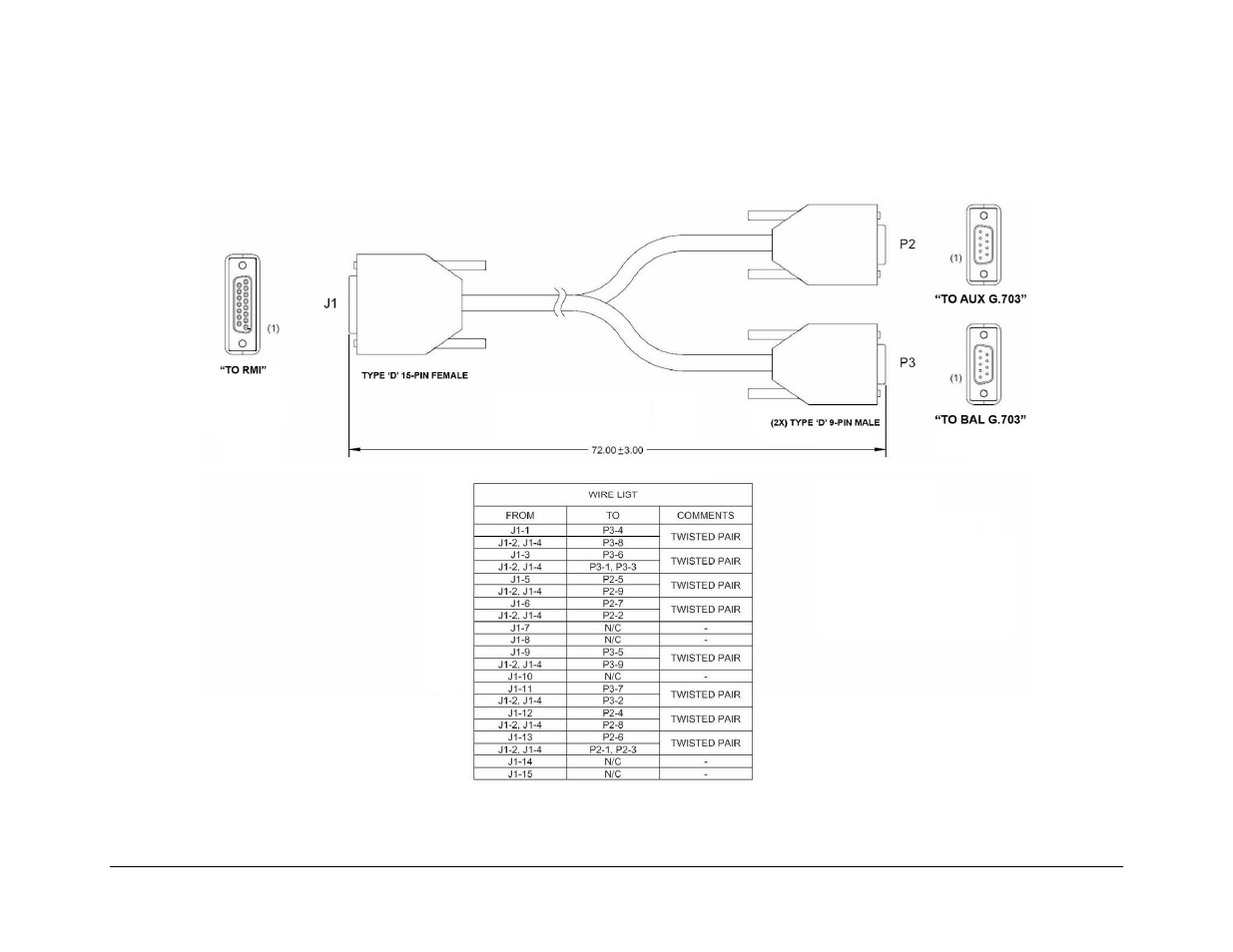

Figure A-18. CDM-625 Quad E1 ‘Y’ Cable (CA-0000073)
