EIA-530 to V.35 Data Cable
Figure A-2 shows the cable drawing for EIA-530 to V.35 DCE conversion for connections between the Switch and the User data.

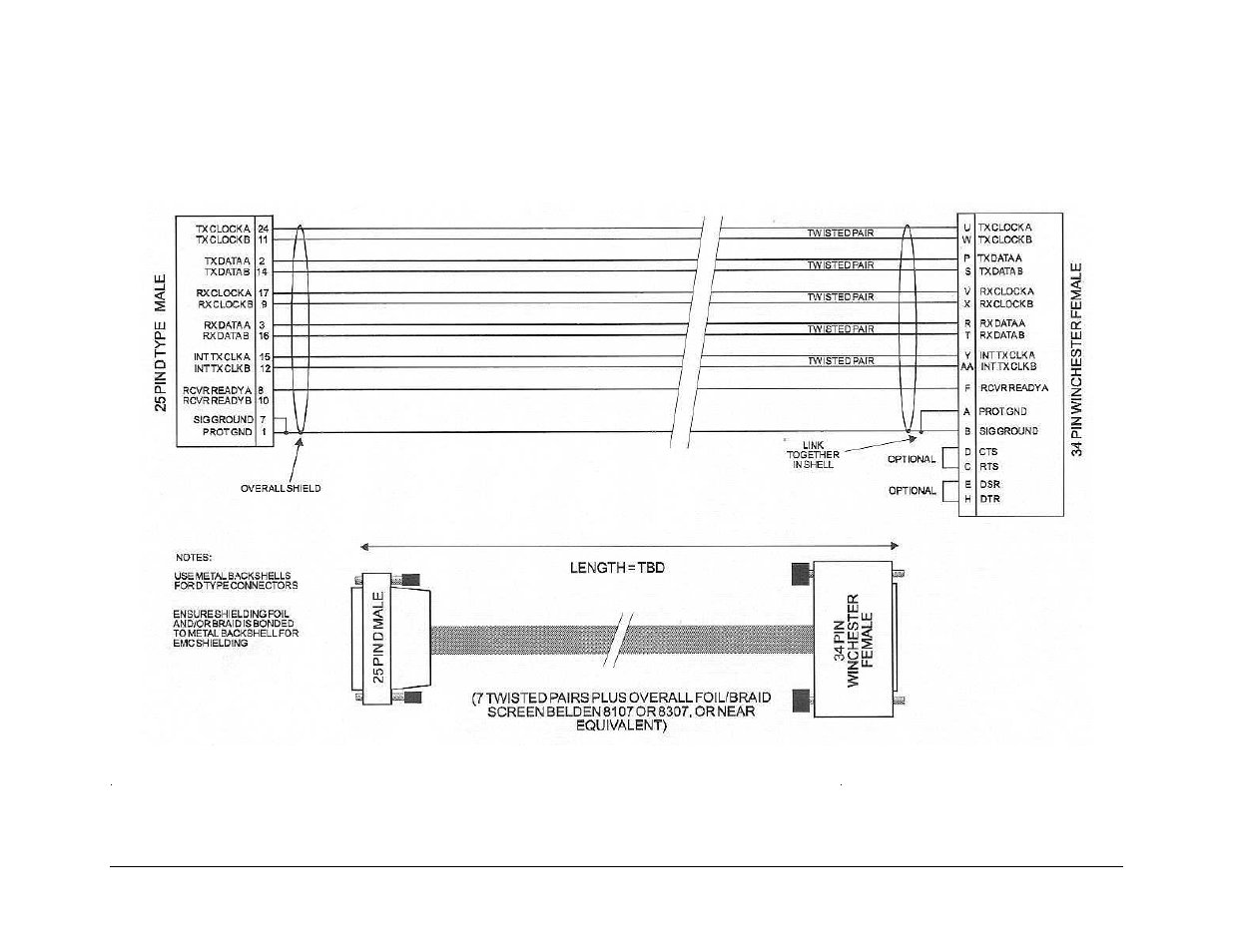

Figure A-2. DCE Conversion Cable: EIA-530 to V.35
