A.4.19 Quad E1 Data Adapter Cable for CDM-625
Figure A-31 shows the data cable used to adapt the Type ‘D’ 9-pin female Balanced G.703 or Auxiliary G.703 connectors to a standard
RJ-48 connector pair for Quad E1 operation.

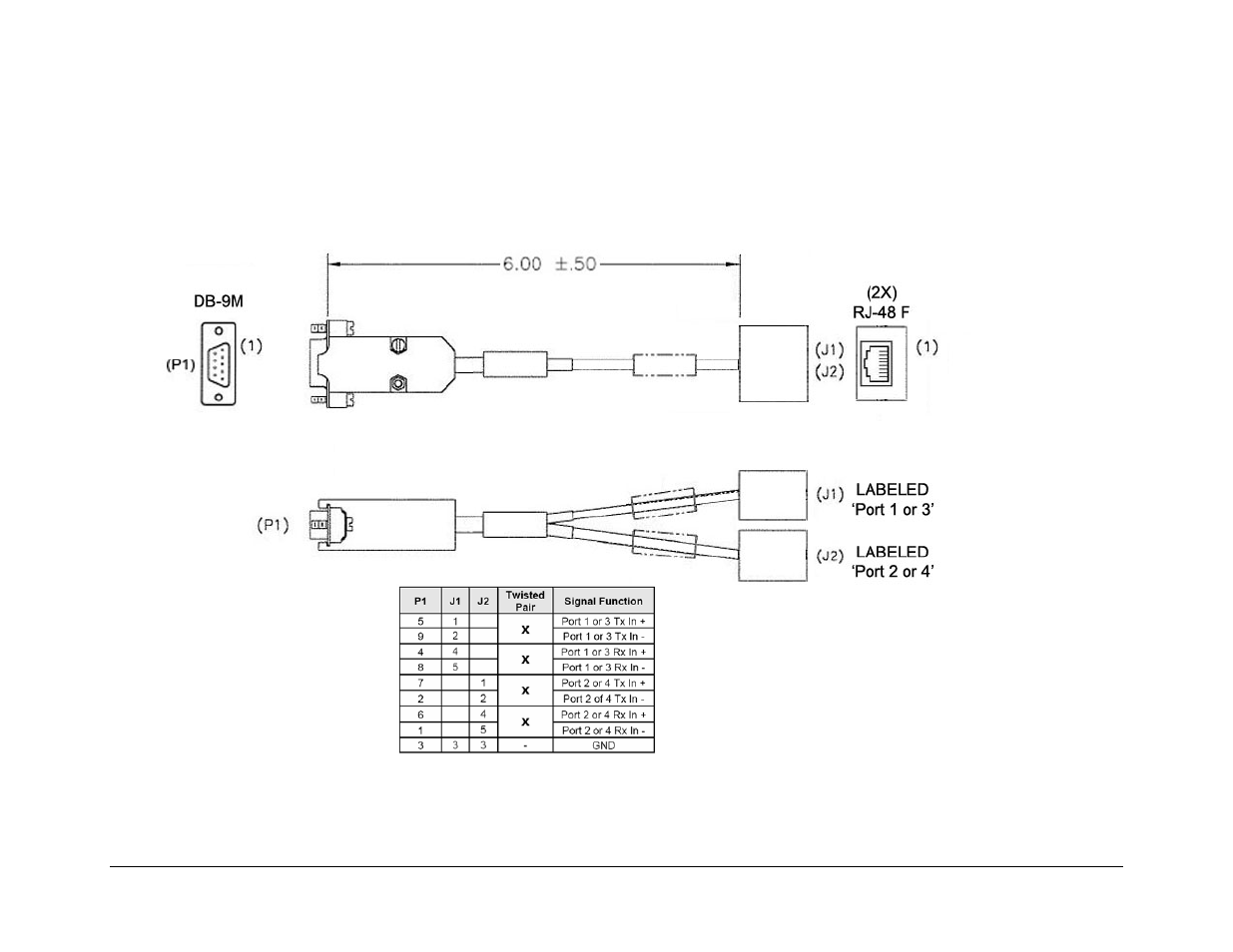

Figure A-31. Quad E1 Data Cable for CDM-625 (CA-0000164)
