7.1.2 Front Panel LED Indicators
7.1.2.1 Unit Status LED Indicators

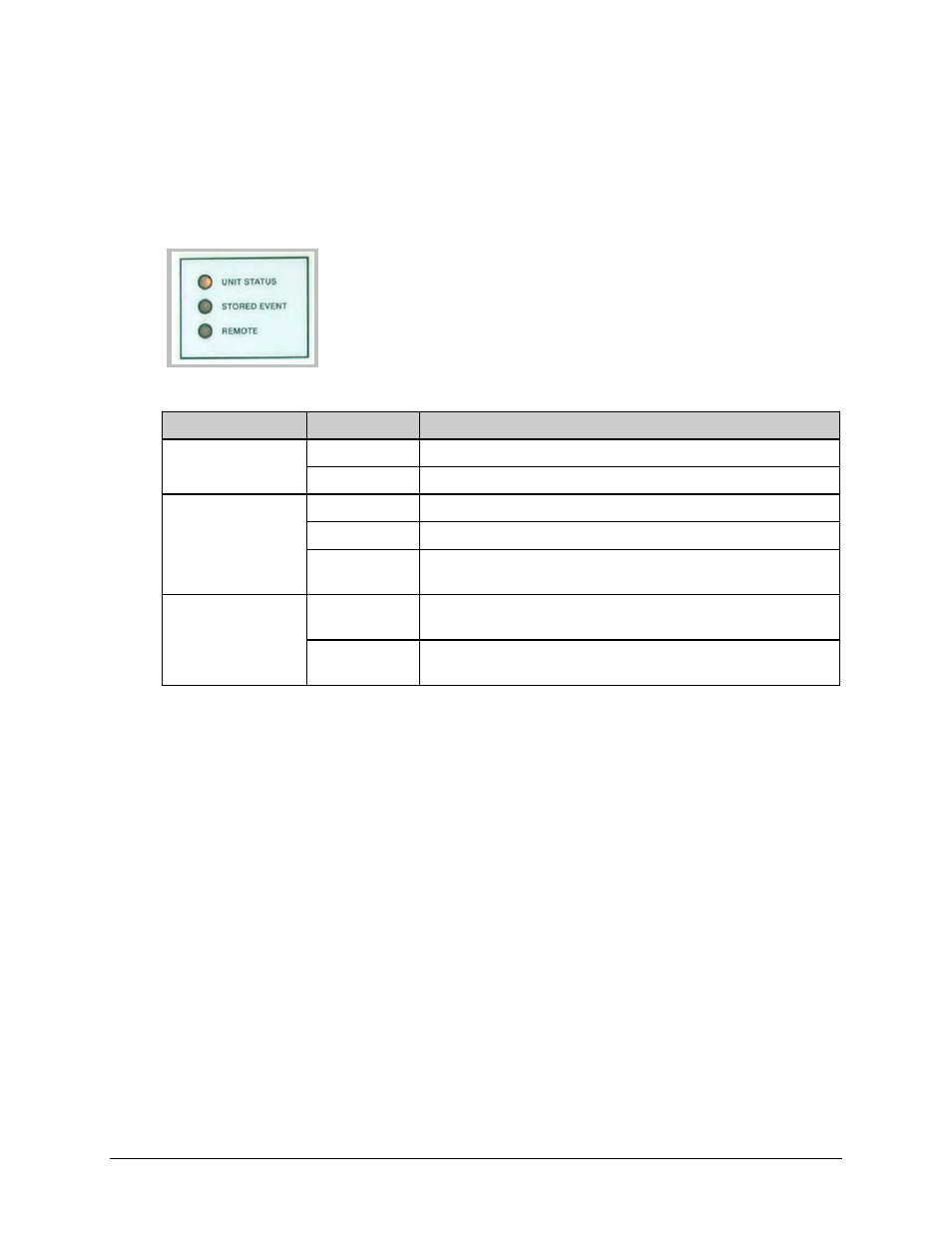

The behavior of the three front panel LEDs adjacent to the keypad, which
indicate operational status of the CRS-300 switch unit, are described below
in Table 7-1:
Table 7-1. Unit Status LED Indicators
LED
Color
Condition
UNIT STATUS
Green
Normal operation (no Switch Faults)
Red
Switch Fault, e.g., PSU fault or COMMS failure
STORED EVENT
Off
No Stored Events
Orange
Switch has Stored Events
Orange
(Flashing)
CAUTION: Switch is in Manual mode
REMOTE
Off
Switch in Local Mode – remote monitoring is possible;
remote configuration control is not allowed
Orange
Switch in Remote Mode – configuration changes are
disabled via the front panel keypad
