CRS-300 1:10 Redundancy Switch
Revision 16
Cable Drawings
MN/CRS300.IOM
A-14
A.3.9
Control ‘Y’ Cable for SLM-5650/5650A to CRS-300
Figure A-12 shows the Control ‘Y’ Cable that connects the SLM-5650/5650A to the CRS-300 RMI/TMI. This is an optional cable, purchased
separately, used in place of the CA/WR12136-1 cable (see Figure A-11) to give the User access to the AGC and I&Q outputs of the modem.

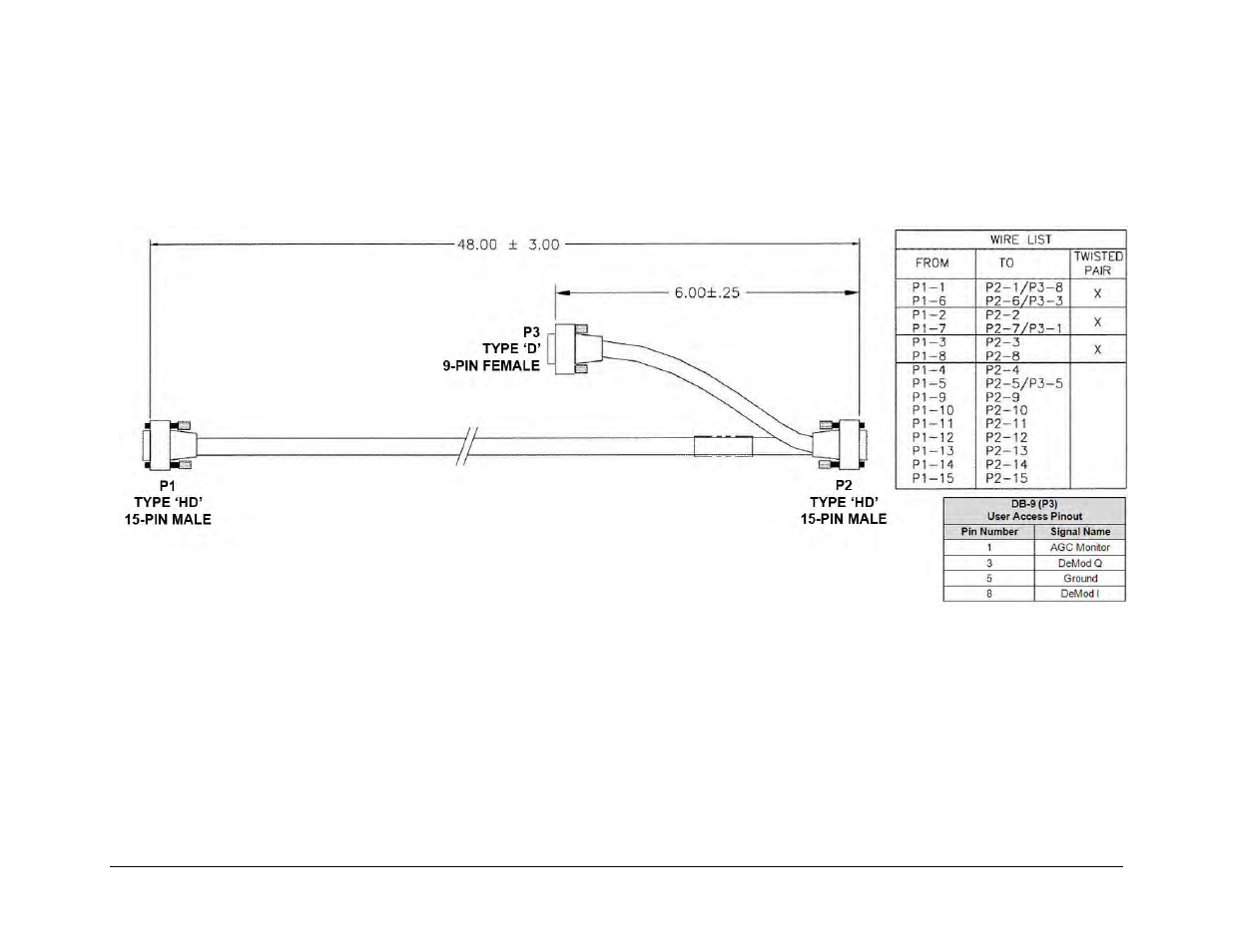

Figure A-12. SLM-5650/5650A Control ‘Y’ Cable (CA/WR12842-6)
