CRS-300 1:10 Redundancy Switch Revision 16
Introduction MN/CRS300.IOM
1–6
1.3.1 CRS-280/280L Functional Schematic
Figure 1-2 provides an operational schematic for the CRS-280/280L IF Switch.

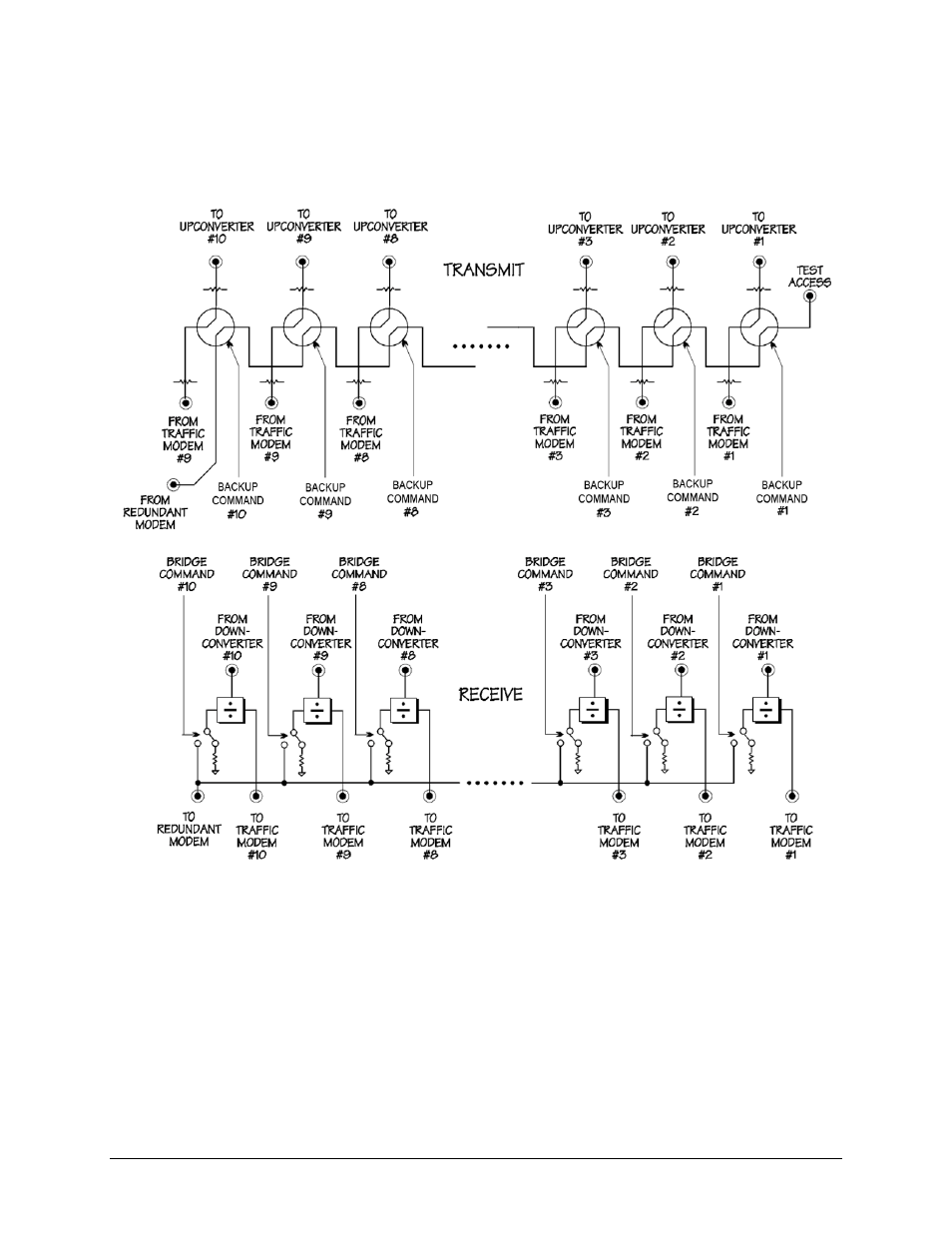

Figure 1-2. CRS-280/280L IF Switch Operational Schematic
