CRS-300 1:10 Redundancy Switch Revision 16
Introduction MN/CRS300.IOM
1–12
1.4.4.1 RMI Cards: CDM-Qx/QxL, -700, -710, -710G, SLM-5650/5650A

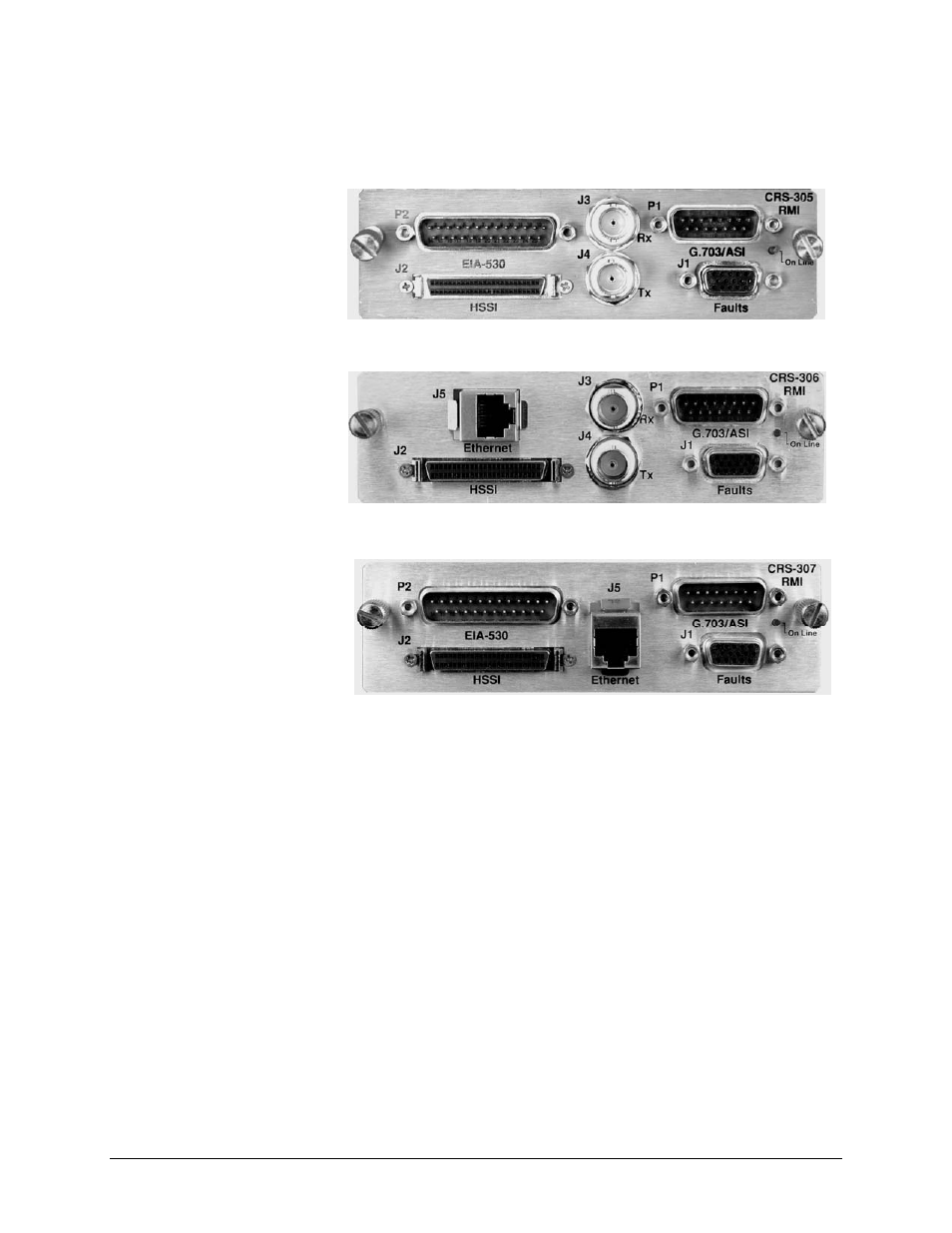

Figure 1-11.
CRS-305 RMI
(PL/11494-1)
DB-25 Male (2X) BNC Male DB-15 Male
HD-50 Female HD-15 Female
Figure 1-12.
CRS-306 RMI
(PL/11494-2)
10/100/1000 (2X) BNC Male DB-15 Male
HD-50 Female HD-15 Female
Figure 1-13.
CRS-307 RMI
(PL/11494-3)
DB-25 Male DB-15 Male
HD-50 Female RJ-45 HD-15 Female
