Gateway ALR 8300 User Manual
Page 56
44 Maintaining and Troubleshooting the Gateway ALR 8300 Server
5.
Remove the replacement drive from its protective cover and align the
guide rails with the RAID bay guides.
6.
Slide the drive into the bay until the connector makes contact with the
SCA connector on the backplane (see Figure 23).

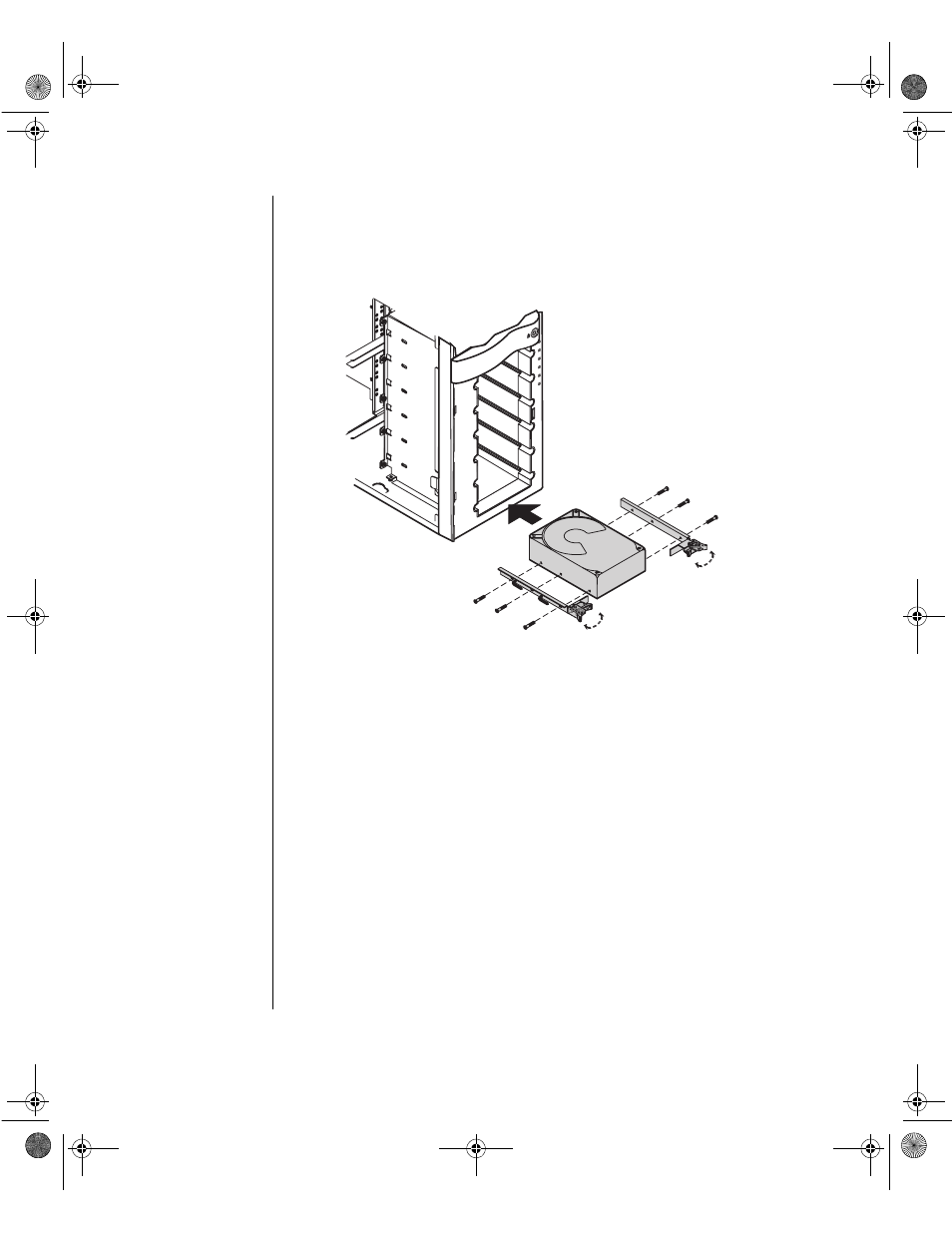

Figure 23: Installing an SCA Drive
7.
Press the drive in firmly until the connector seats securely. Press the
latches inward until they click into place to seat the drive securely in
the bay.
8.
Close the lower bezel door and lock it.
4081TL.book Page 44 Tuesday, December 22, 1998 1:27 PM
