8 Maintaining and Troubleshooting the Gateway ALR 8300 Server
2. Carefully thread the ribbon cables through the openings in the chassis
and connect them to the appropriate connectors. See Figure 7 on
page 12 for the locations of the connector on the system board and see
the RAID Cage Configuration Guide for the location of the connector
on the RAID bay backplane.
3. Secure the bezel with the screws you removed when removing the
bezel.
Reinstalling the wrap-around panel
You must replace the bezel before you replace the wrap-around panel. You
must replace the wrap-around panel before you replace the side panel.
1. Hold the wrap-around panel at a slight angle over the chassis as shown
in Figure 5.

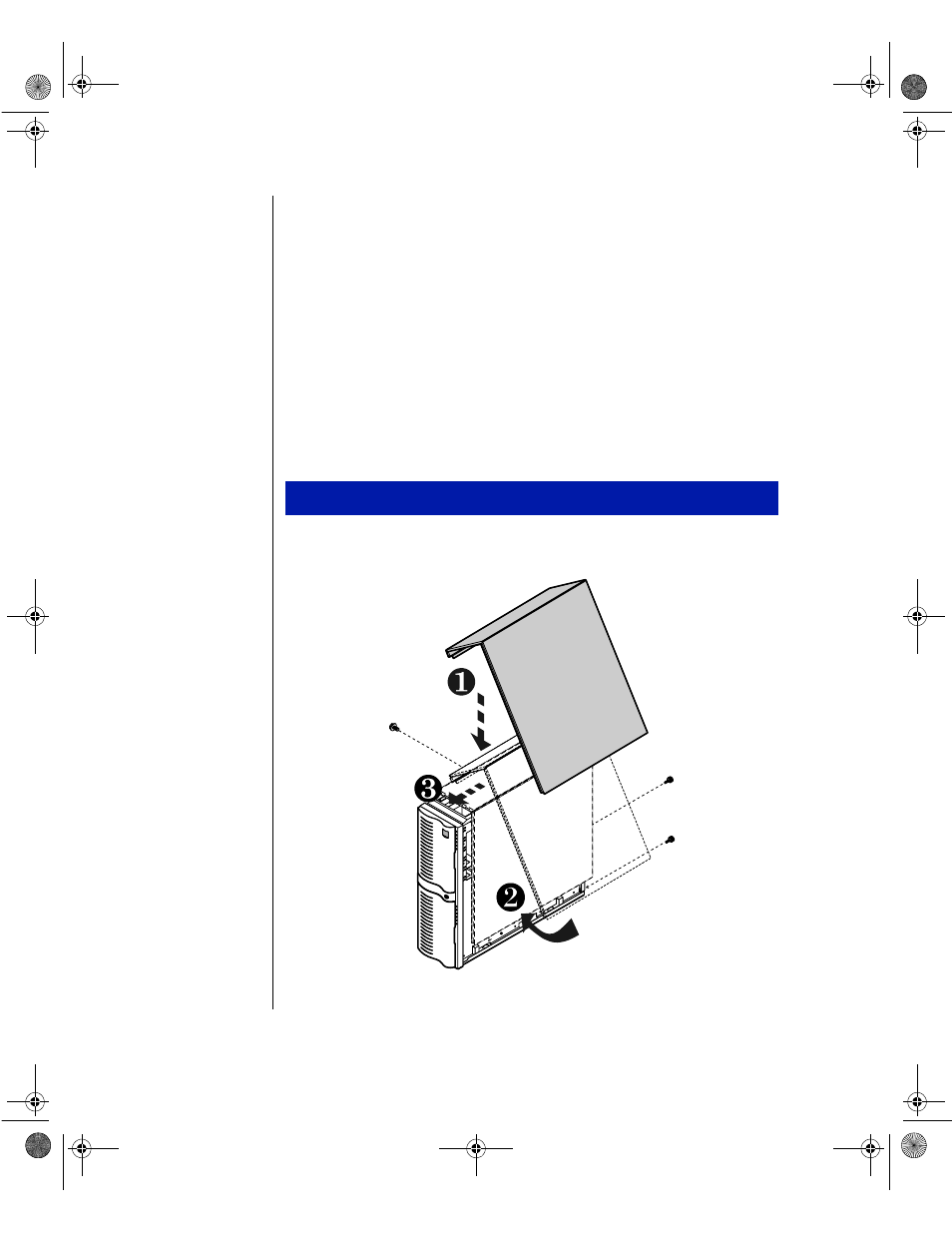

Figure 5: Reinstalling the Wrap-Around Panel
To Replace the Wrap-around Panel
