Page 54
-52-
G0509 & G0509G 16" x 40" Lathe
main electrical box

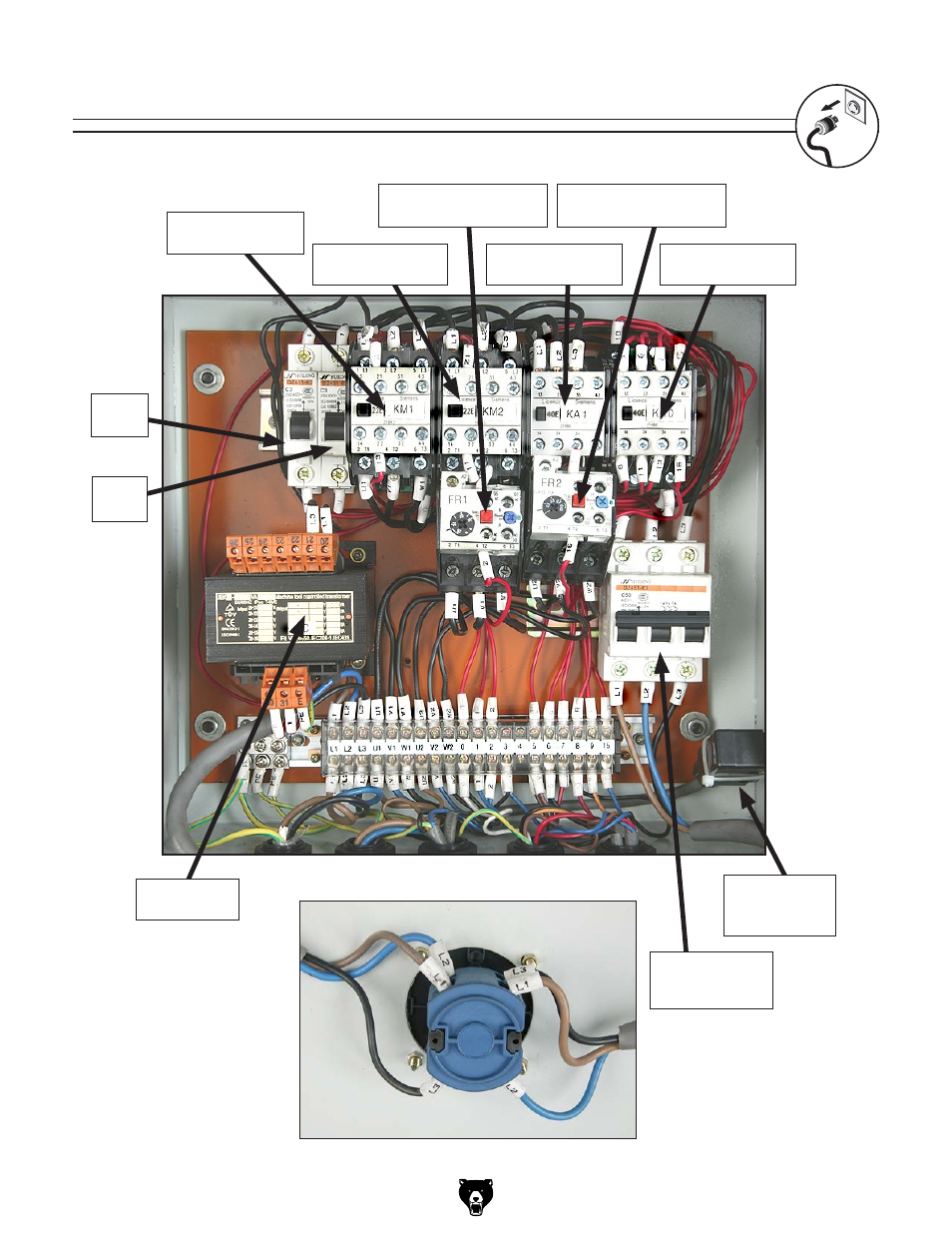

figure 74. Electrical box wiring.
Fuse
(Fu1)
Fuse
(Fu2)
spindle Motor
Contactor (KM1)
spindle Motor
Contactor (KM2)
spindle Motor
thermal relay (Fr1)
Coolant Motor
Contactor (KA1)
Coolant Motor
thermal relay (Fr2)
Main power
Contactor (KA0)
Main power
Circuit Breaker
(Fu1)
transformer
(tC)
Belt Cover
safety limit
switch (sQ3)
figure 75. Main power switch (s) connections.
note:
See
Pages 56 and 57 for wire connections.
