G0509 & G0509G 16" x 40" Lathe
-17-
clean up
the unpainted surfaces are coated with a waxy
oil to prevent corrosion during shipment. remove
this protective coating with a solvent cleaner or
citrus-based degreaser such as grizzly’s g7895
Citrus degreaser. to clean thoroughly, some
parts must be removed.

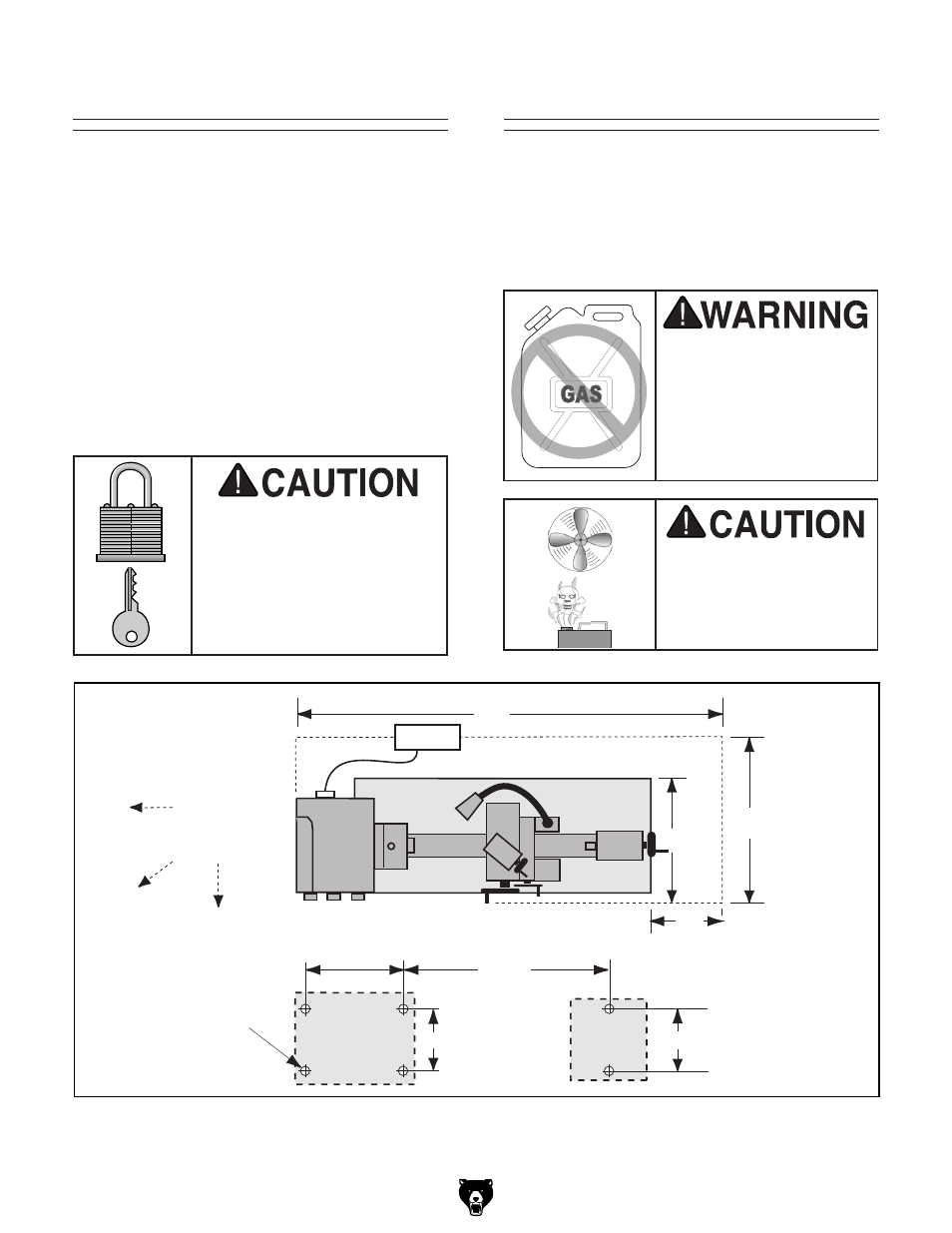

figure 4. Machine clearances and bolt pattern.
60"
80"
24"
Keep
Workpiece
Loading Area
Unobstructed Lathe
220V 3-Phase
Supply
Left
Footprint
36"
14 " 7 /
8
21 " 1 / 2
46 " 1 / 2
Right
Footprint
20 " 1 / 2
" 7 / 8
Mounting Holes
site considerations
floor load
your lathe is a heavy load distributed in a small
footprint. place this machine on concrete floors
only. the floor Must be level, or the lathe frame
and ways may distort over time.
placement location
Consider existing and anticipated needs, service
panel access, length of material to be loaded into
the lathe, and space for auxiliary stands, work
tables or other machinery when establishing a
location for your lathe (see
figure 4 for minimum
wall clearances).
children and visitors may be
seriously injured if unsuper-
vised. lock all entrances to
the shop when you are away.
do not allow unsupervised
children or visitors in your
shop at any time!
gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. do
not use these products
to clean the machinery.
many cleaning solvents
are toxic if inhaled.
minimize your risk by only
using these products in a
well ventilated area.
