changing motor
rotation
if the chuck turns away from you at the top of the
chuck when the spindle lever is in the down posi-
tion, motor rotation must be reversed, by swap-
ping the position of two of the three motor power
supply wires.
to change the direction of the motor:
1. disConnECt lAthE FroM poWEr!
2. remove the main electrical box cover (figure
12) at the rear of the lathe, and swap l1 and
l3 input wires (figure 12).
disconnect the lathe from
power before working on
wiring, and get help from an
electrician if you are unsure
about your wiring skills and
codes. electrocution or fire
could result if this warning
is ignored!

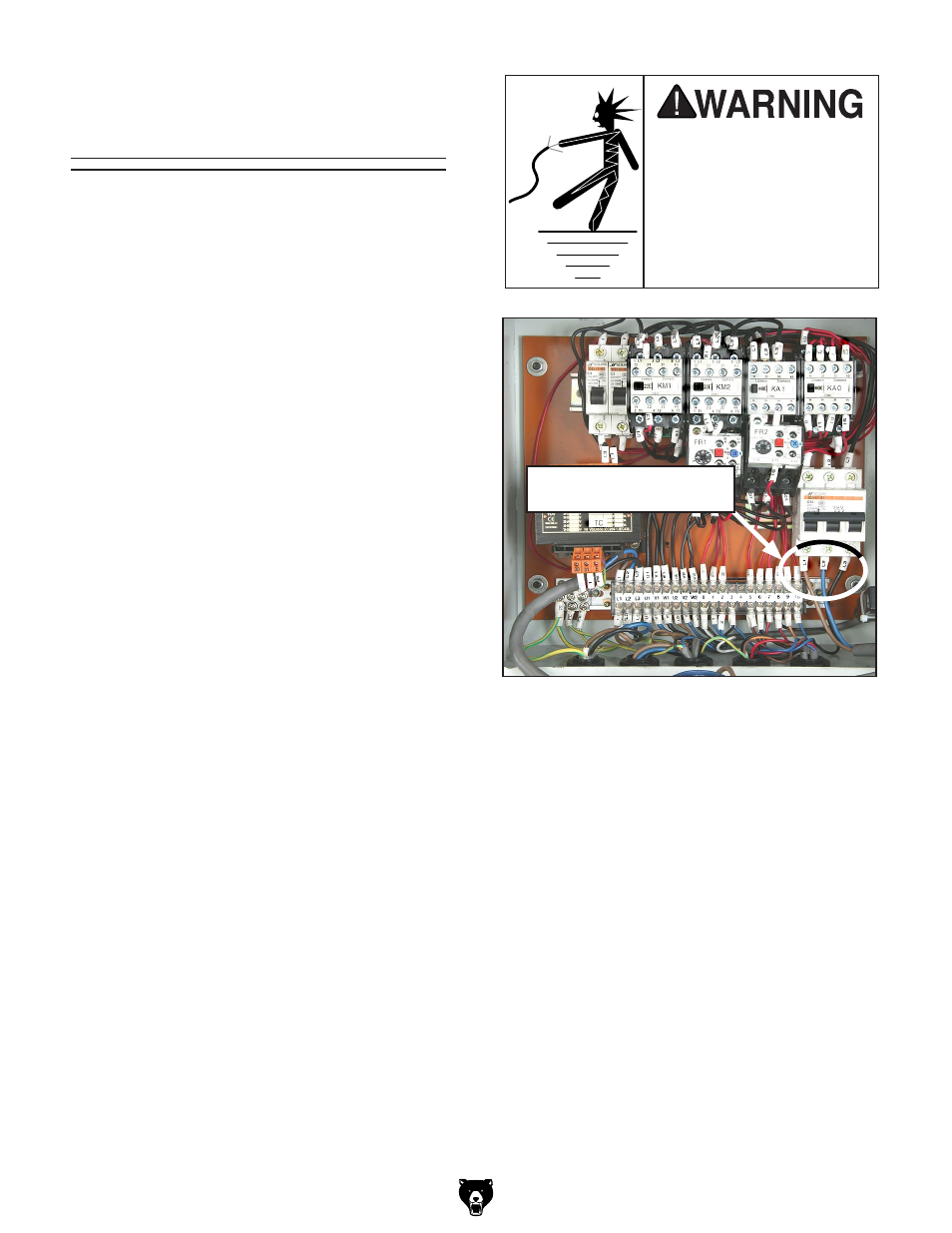

figure 12. Motor power supply junction block.
power input Wire
location l1, l2, or l3.
