-16-
G0509 & G0509G 16" x 40" Lathe
After all the parts have been removed from the
shipping crate, you should have the following
items with your lathe.
installed components (figure 2) Qty.
a. 8" three-Jaw Chuck w/Jaws ...................... 1
b. steady rest ................................................ 1
c. Quick Change tool post w/tool holder ..... 1
d. Follow rest ................................................. 1
loose components (figure 3)
e. 12" Four-Jaw universal Chuck ................... 1
f. 14" Faceplate ............................................. 1
g. little red tool Box ..................................... 1
h. tool holder (1-installed) ............................. 2
i. Wrench set 6/7, 8/10, 9/11, 11/13,
12/14, 17/19, 22/24, and 27/30mm ....... 1 ea
J. Camlock t-Wrench ..................................... 1
K. tool holder/Apron lock t-Wrench ............. 1
l. 4-Jaw Chuck t-Wrench .............................. 1
m. 3-Jaw Chuck t-Wrench .............................. 1
n. 4-Jaw Chuck Camlock studs ..................... 6
o. oil Bottle ..................................................... 1
p. Mt#6 to Mt#4 spindle sleeve Adapter .... 1
Q. Cast-iron Feet ............................................ 6
r. Jacking studs W/nuts ................................ 6
s. hex Wrench set 2, 2.5, 3, 4, 5, 6, 8,
10, and 12mm ....................................... 1 ea
t. spider screws ............................................ 4
u. #2 phillips screwdriver ............................... 1
v. #2 standard screwdriver ............................ 1
W. tailstock lock lever .................................. 1
X. handwheel handle set ......................... 1 ea
y. Carbide tip dead Center Mt#4 ................. 1
z. standard tip dead Center Mt#4 ............... 1

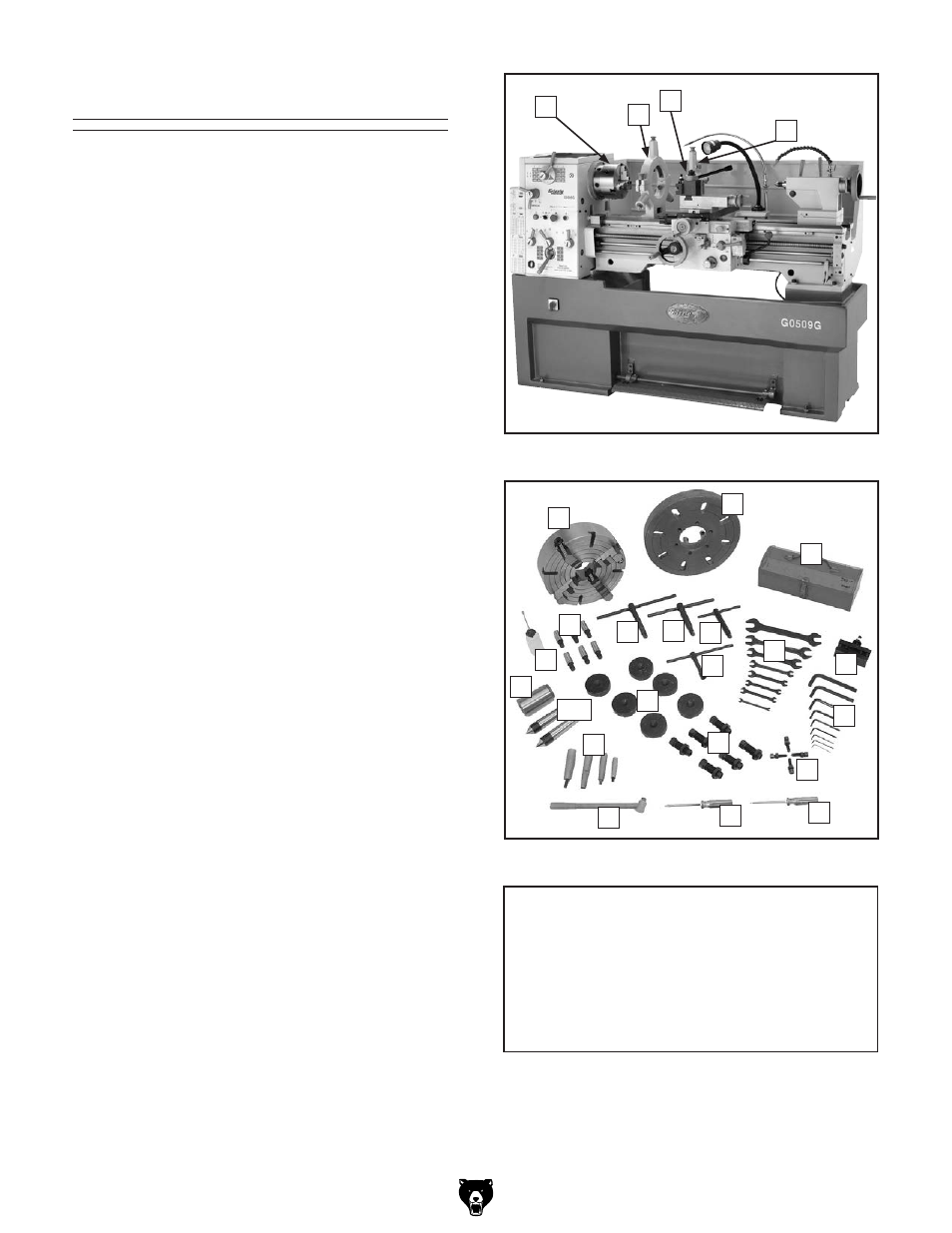

figure 2. installed components.
d
A
C
B
inventory
NOTICE
some hardware/fasteners on the inventory
list may arrive pre-installed on the machine.
check these locations before assuming that
any items from the inventory list are miss-
ing.
figure 3. packaged components.
E
F
g
M l J
K
i
s
h
r
t
u V W
X
Q
p
n
o
y,z
