138 Operating Manual BX900 S1
Hot-plug components
©
c
o gn
itas
. G
es
el
ls
ch
ft f
ür
T
ec
h
ni
k-
Do
ku
m
en
tat
io
n
m
bH
2
01
1
P
fa
d:
C
:\P
rogr
am
m
e \F
CT
\t im
_ap
p\
tim
_l
oc
al
\w
ork
\W
A
LT
E
R
\O
B
J_
DO
K U
-4
95
3-0
07
.fm

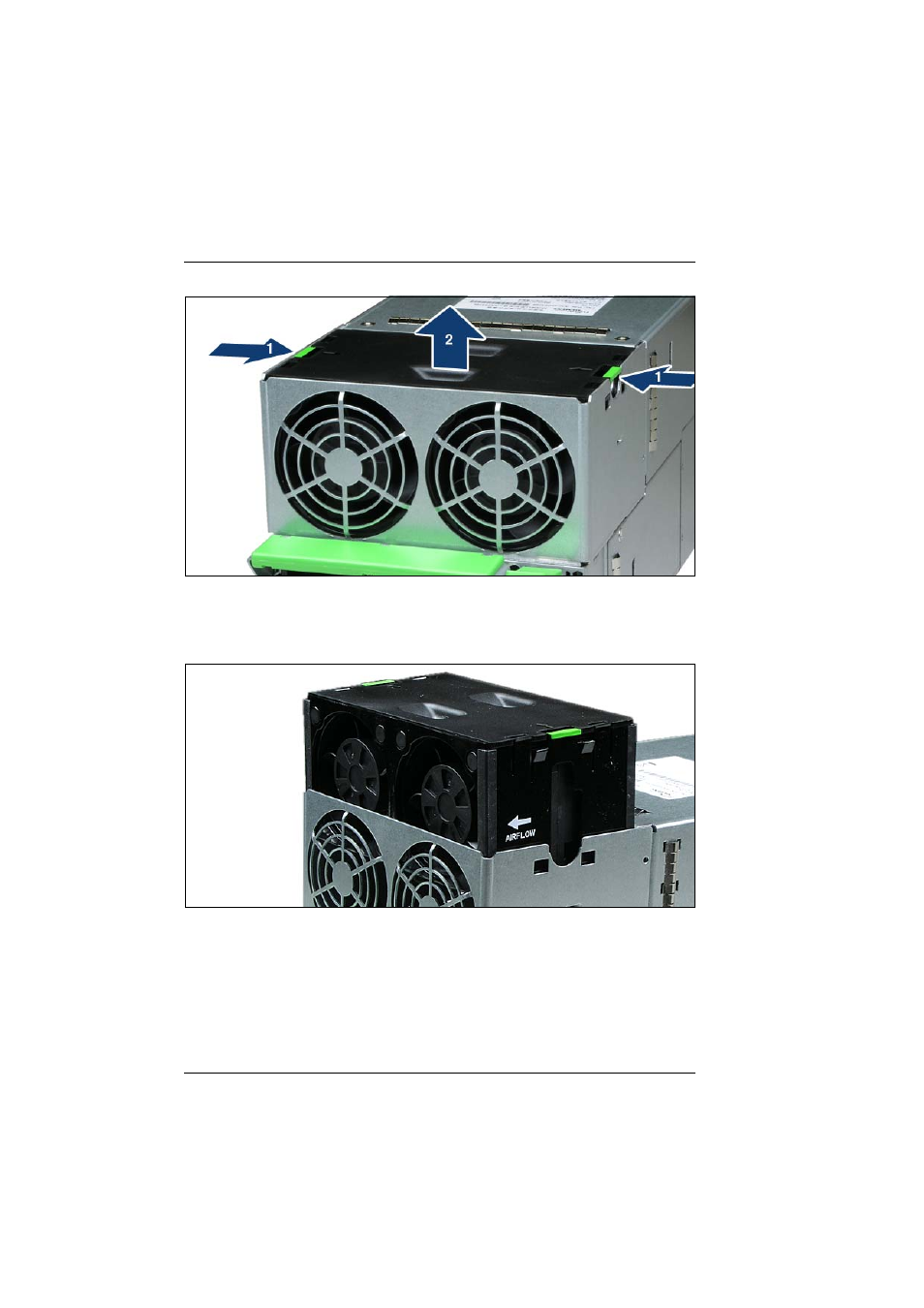

Figure 58: Removing a fan unit
Ê Press the green locking elements inward (1) and pull the fan unit out of the
housing (2).
Figure 59: Installing a fan unit
Ê
Insert the fan unit such that the airflow is directed out of the back of the
system unit. The printed airflow arrow must point to the back of the system
unit..
