Hot-plug components
8.2.3 Connection Blade 10 GbE Switch/IBP 18/8
The Connection Blade 10 GbE Switch/IBP 18/8 can be used as a layer-2+
switch or an Intelligent Blade Panel (IBP). It provides the following connections:
– 18 internal 10-Gbit ports to the server blades
– 8 external 10-Gbit ports through SFP+ modules or active twinax cables
(copper)
This connection blade can be used in connection blade slots CB1/2 (fabric 1),
CB3/4 (fabric 2) and CB5/6 (fabric 3), see
figure "Connection blade slots" on
page 117 .
10 GbE connection blades in slots CB3/4 (fabric 2) and CB5/6 (fabric 3) only
support server blades that are fitted with 10 GbE mezzanine cards or 10 Gb
CNA mezzanine cards. For more information, see the operating manuals for the
relevant server blades and the manual "PRIMERGY 10GbE Connection Blade
18/8 User Guide" and " ス イ ッ チブ レー ド 10Gbps 18/8 取扱説明書 "(for the
Japanese market).
Ports and LEDs

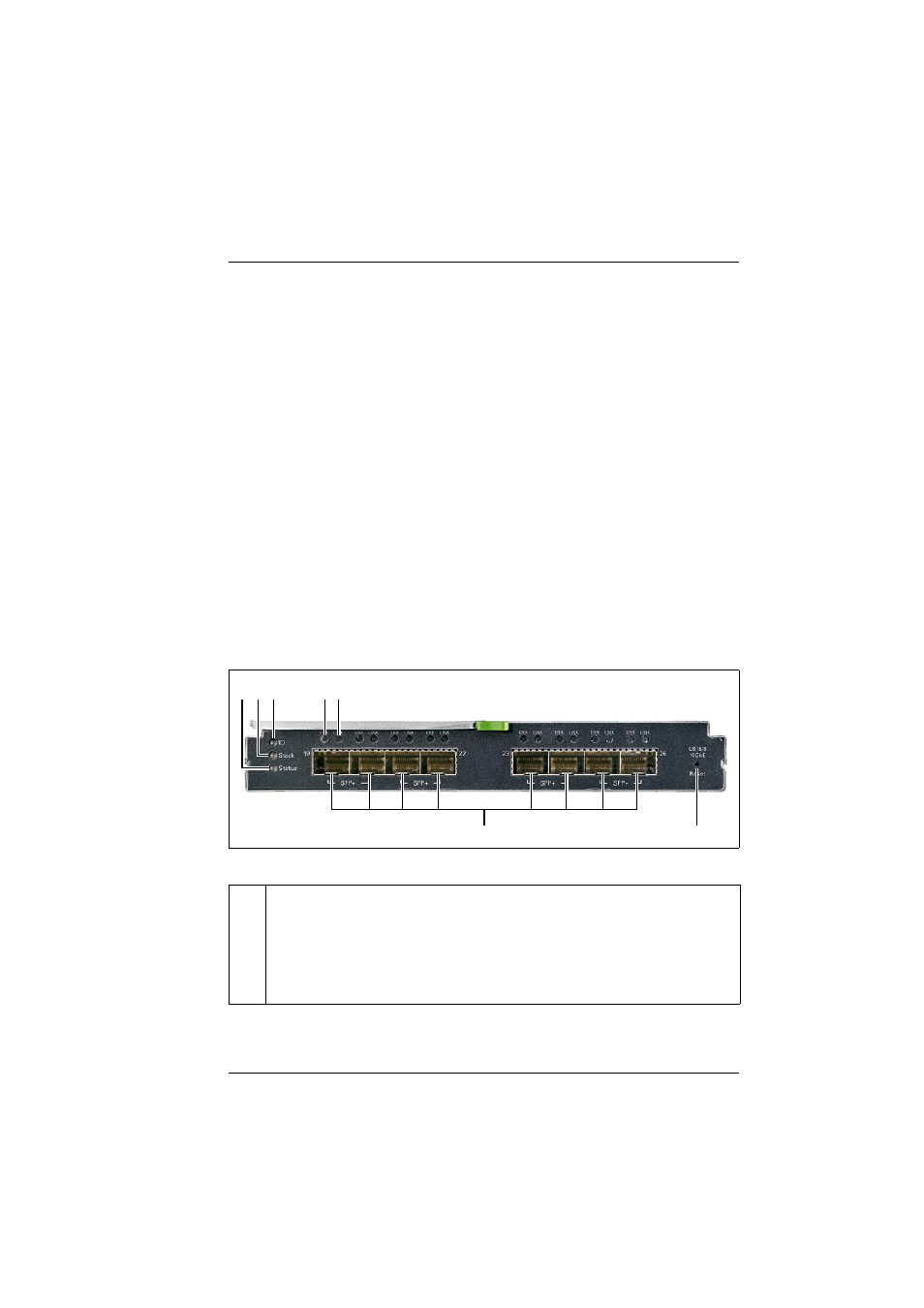

Figure 36: Connection Blade 10 GbE Switch/IBP 18/8
1 Status indicator (green/orange)
Lit green: Power supply is supplied to the connection blade
Flashes
alternately
green/orange: Connection blade error
Dark: Power supply is not supplied to the connection blade
1 2 3 4 5
