PD-6 DVD Location Recorder (Chapter 3: Names and functions)
L (Line)
D (Dynamic Mic)
P (Phantom Power P-48)
T (Phantom Power T-12)
13
14
15
16
17
18
19 20 21 22 23

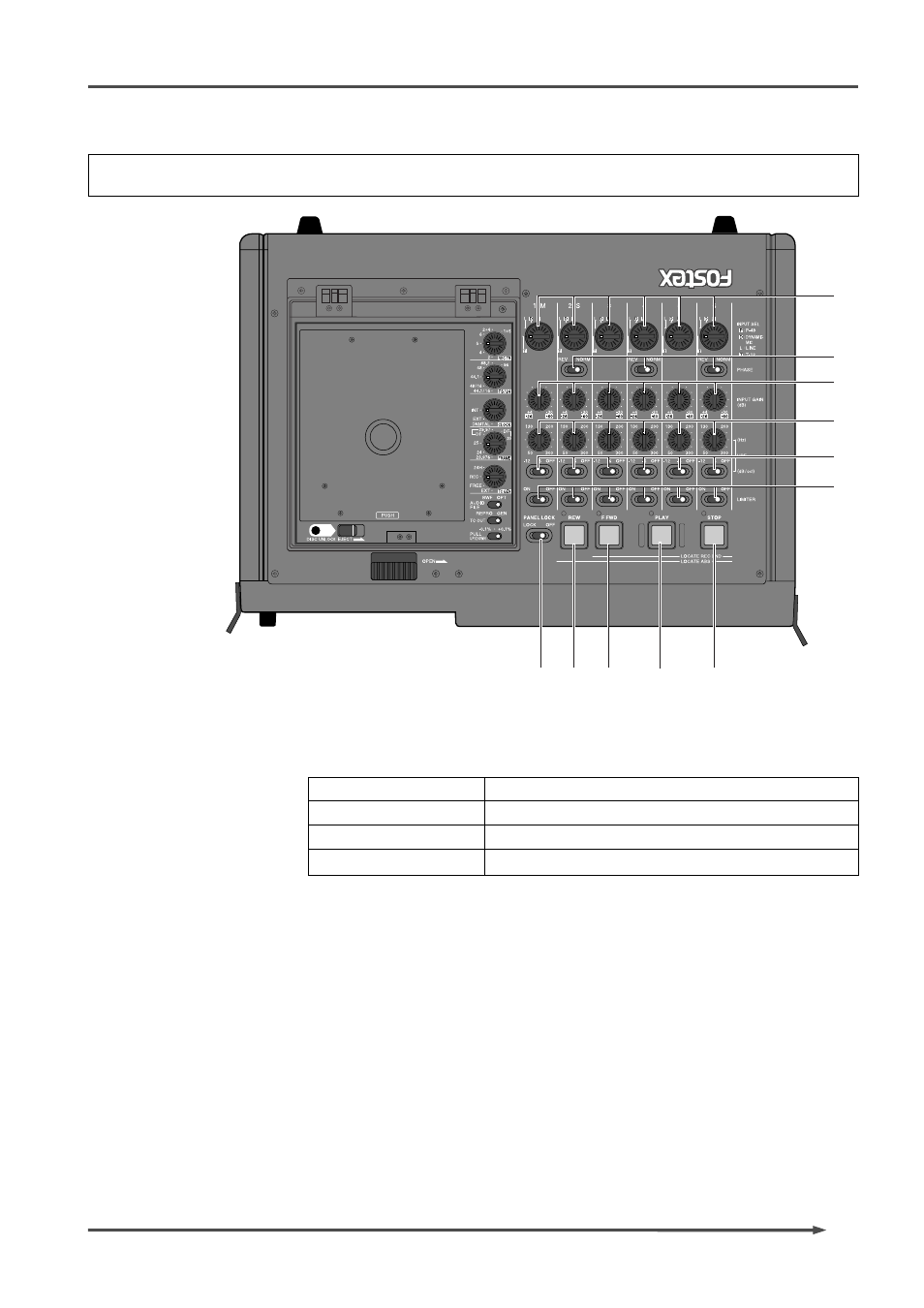

Top panel (part 2)
13. [INPUT MODE] switches
Each switch selects the type of analog audio input source for the corresponding
channel from among the following.
Line-level input
Dynamic microphone
48 V phantom powered microphone
12 V phantom powered microphone
14. [PHASE] switches
Used to reverse the input phase.
Only even (2, 4 and 6) channels offer the [PHASE] switches.
15. [INPUT GAIN] controls
Each control adjusts the input gain of the corresponding channel.
The gain control range differs depending on the [INPUT MODE] setting, as
follows.
When the [INPUT MODE] is set to “LINE”:
You can adjust the nominal input level within the range between approximately
-30 and +4dBu.
When the [INPUT MODE] is set to “D”, “P” or “T”:
You can adjust the nominal input level within the range between approximately
-60 and -26dBu.
