Fostex PD-6 User Manual
Page 33
31
PD-6
DVD Location Recorder (Chapter 3: Names and functions)
1
2
3
1
2
3
1
2
3
GND
HOT
COLD
1
13
14
25
Signal
Input 1/2
Input 3/4
Input 5/6
Input 7/8
Output 1/2
Output 3/4
Output 5/6
Output 7/8
Frame GND
Open
Hot
Cold
1
2
3
4
5
6
7
8
14
15
16
17
18
19
20
21
10, 12, 13, 22,
23, 24, 25
9, 11
Open
GND
5.

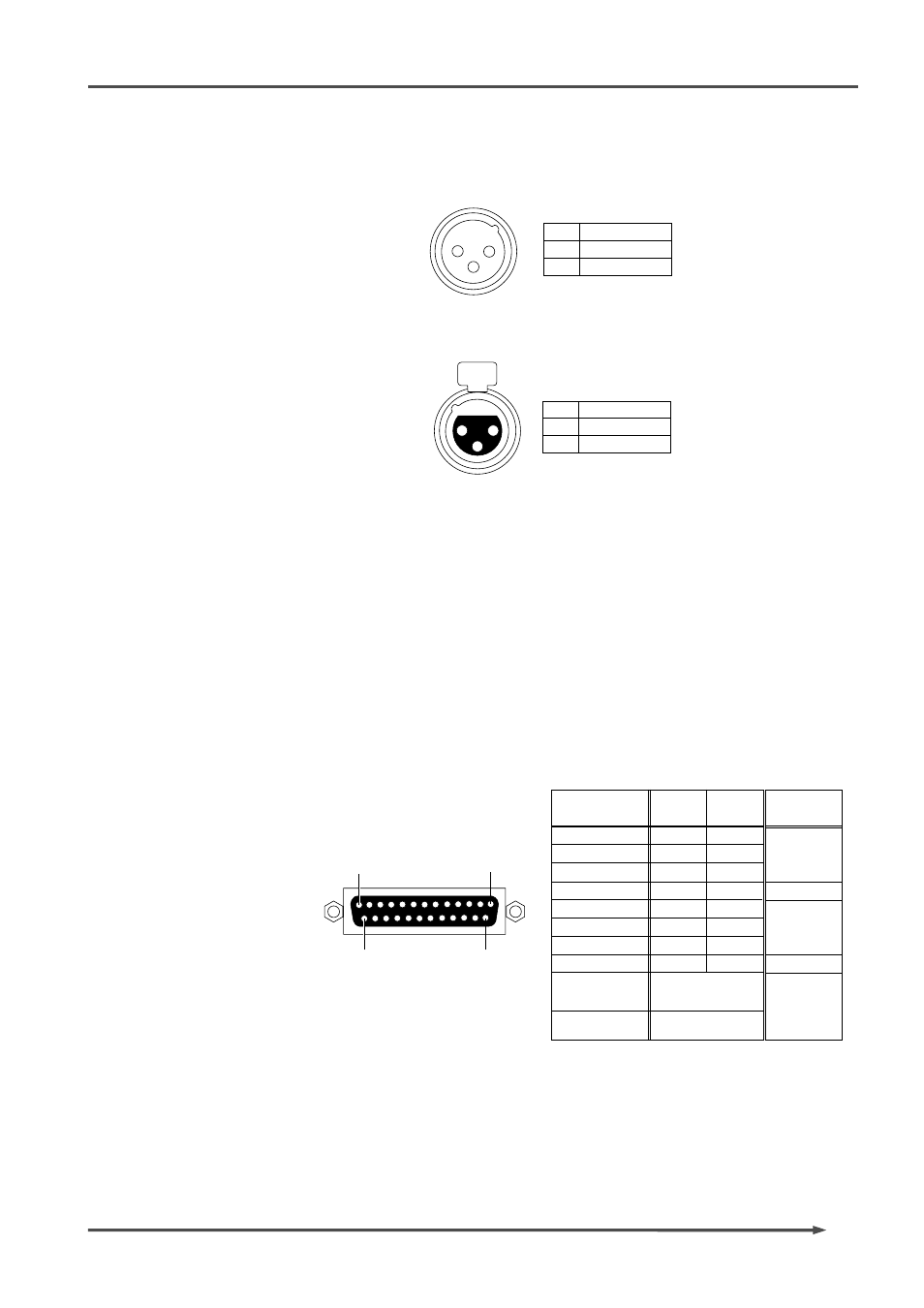

[TIME CODE OUT] connector
Outputs time code. Connector: XLR-3-32 type (balanced)
6.
[TIME CODE IN] connector
Inputs external time code. Connector: XLR-3-31 type (balanced)
7.
[WORD IN] terminate switch
Terminates the word input signal by setting the switch to “ON”.
8.
(Blank cap for installing the option)
This part is reserved for installing the optional AATON.
9.
[WORD/VIDEO IN]/[WORD OUT] connectors
The [WORD/VIDEO IN] connector receives word or video clock.
It automatically detects the clock type (word or video).
The [WORD OUT] connector feeds a word clock. Connectors: BNC type
10.
[DIGITAL I/O] connector
Receives and feeds AES/EBU or S/P DIF digital signals.
Connector: 25-pin D-sub connector
You can make AES/EBU or S/P DIF selection using the menu in the Setup mode.
•
The pin assignment is compatible with the 25-pin D-sub connectors provide
on the Fostex 8350 and Yamaha equipment.
•
Recommended connection cable:
DBK-258, DB-25 (M), TO 4XLR (M), AND 4XLR (F), 5M (16.5FT.)
AES/EBU DIGITAL AUDIO TRANSFER CABLE
HOSA TECHNOLOGY,INC.
1
2
3
GND
HOT
COLD
Terminal
treatment
