28
PD-6 DVD Location Recorder (Chapter 3: Names and functions)
1 2
3
1
2
3 GND
HOT
COLD
1
2
3
4 5
6
7
8
9 10
1
2
3
L OUT +
R OUT +
L OUT -
4 R OUT -
5 R IN +
6
7
8 R IN -
L IN +
L IN -
9 GND
10 GND
1
2 3 4 5 6 7 8 9

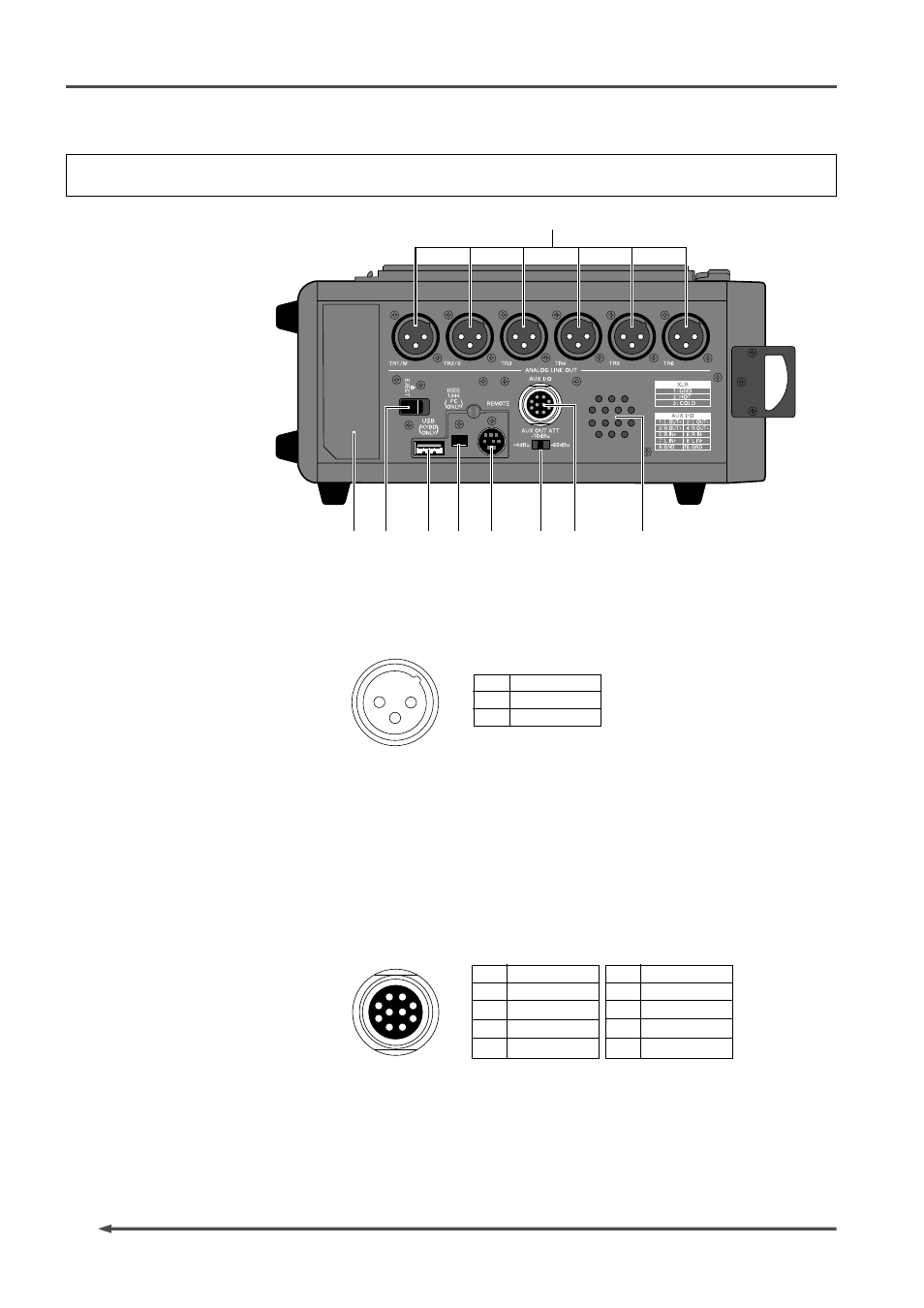

Left side panel (Inputs/outputs)
1. [ANALOG LINE OUT] connectors
These connectors feed analog audio signals of tracks 1 through 6.
Connectors: XLR-3-32 type (balanced)
2. Internal monitor speaker
Outputs track audio signals, error tones, etc.
When a headphones plug is inserted to the [PHONES] jack, the monitor speaker
is inactive.
3. [AUX I/O] connector
The input ports of the [AUX I/O] connector receive audio signals and route
them to the monitor circuit, while the output ports feed stereo buss signals.
You can select the output level from among three options using the [AUX OUT
ATT] switch.
4. [AUX OUT ATT] switch
Switches the output level of signals sent from the output ports of the [AUX I/O]
connector among +4 dBu, -10 dBu and -60 dBu.
