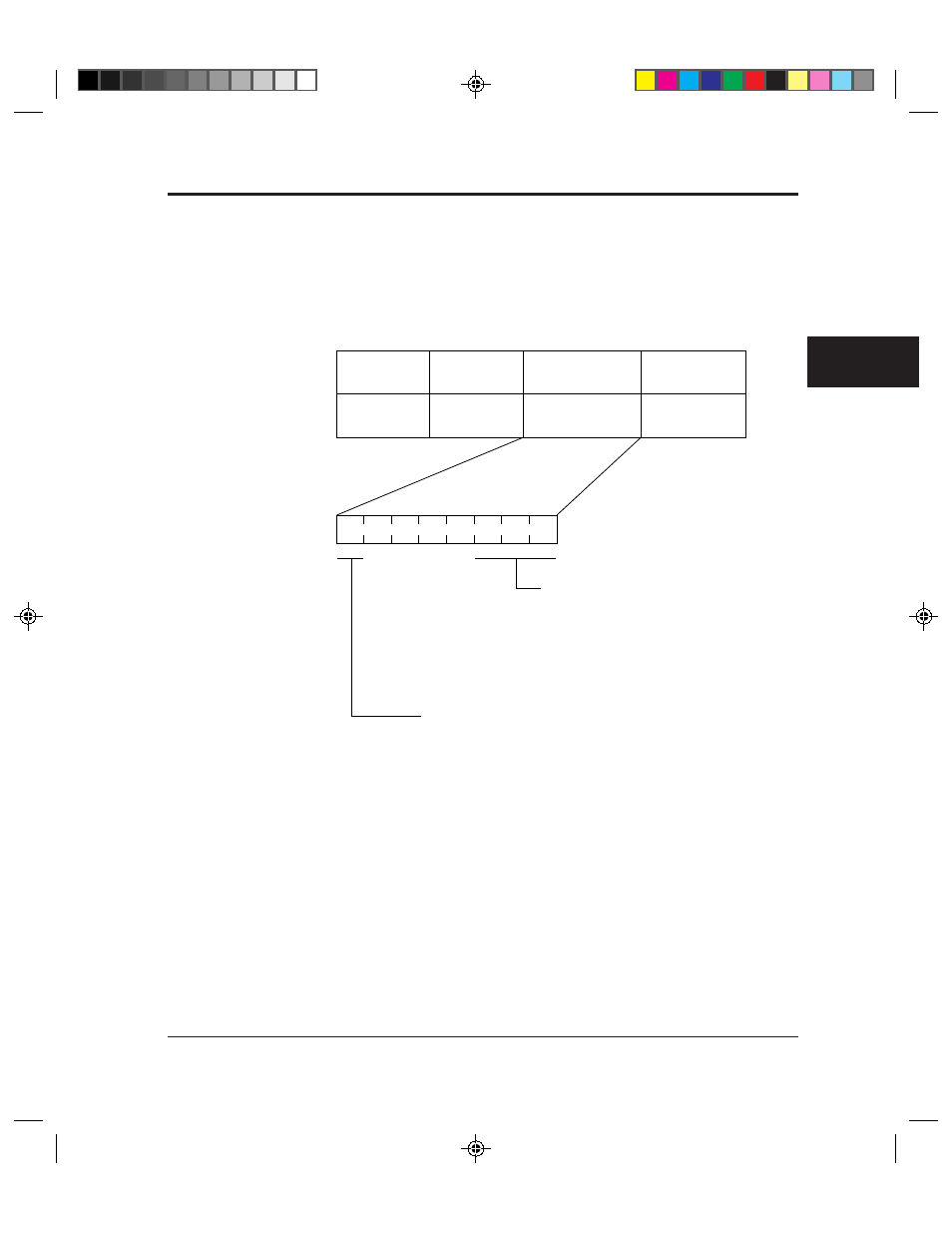

SEND DITHER 1 command
This command is valid for the scanner with the image processing
circuit. By this command, download patterns of dither or overlay
pattern can be registered.
Byte 1
CNT
X'43' Dither or overlay
pattern number
Byte 2
CMD
X'46'
Byte 3
TEXT
Pattern data to
be registered
Byte 4
or later
7 6 5 4 3 2 1 0
Dither and overlay pattern numbers (*1)
000
001
111 : Eight types
•
•
•
Dither and overlay specification
0 : Dithered
1 : Overlay
0 0 0 0
