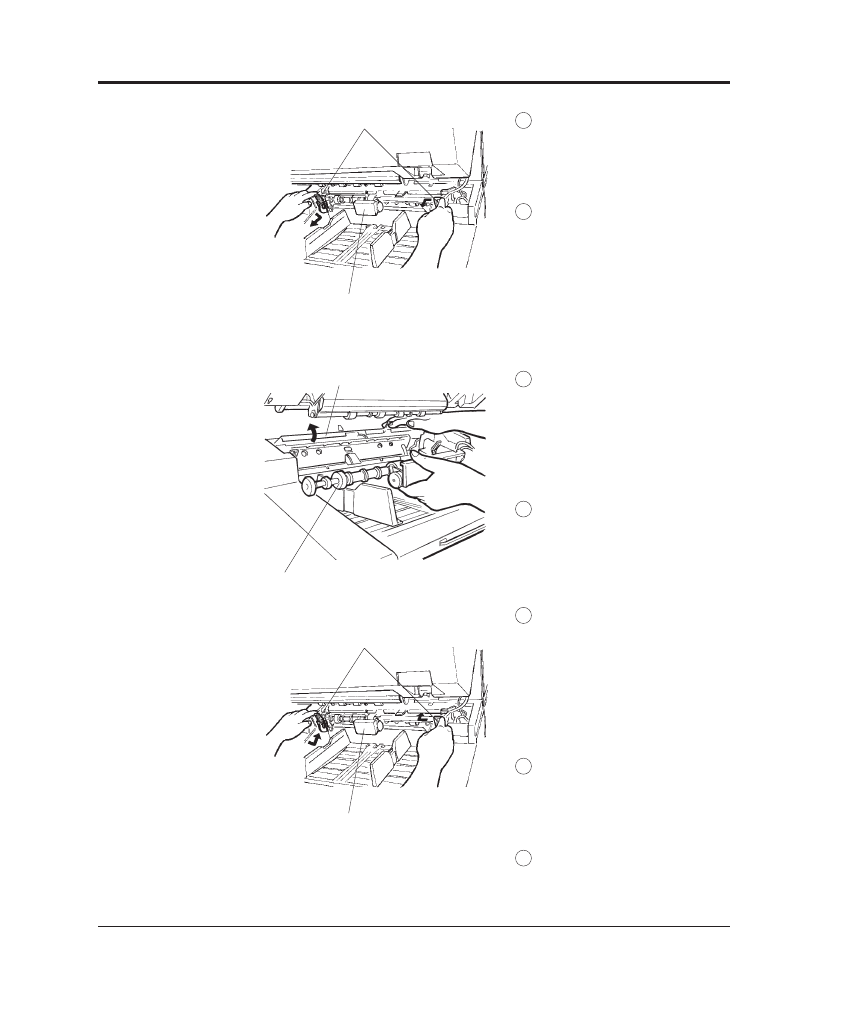

3 Disconnect the two relay
connectors on the roller
ASY. (front: 3 pin, back:
2pin)
4 Push the two levers (green)
towards each other to dis-
engage with the upper
locking holes and lower
down the two levers until
they engage with the two
levers locking holes.
5 Lift the document sensor
unit and keep it at the
upper position with one
hand and pull the roller
ASY out with the other
hand.
6 Install a new roller ASY and
return the document sensor
unit to its original position.
7 Push the two levers (green)
towards each other to dis-
engage with the lower
locking holes and lift them
up until they engage with
the two upper locking
holes.
8 Connect the two relay
connectors on the roller
ASY. (front: 3 pin, back:
2 pin)
9 Close the upper transport
unit. (See page 4-2)
Lever (green)
Roller ASY
Lever (green)
Roller ASY
Roller ASY
Document sensor unit
