4-30 M3099EX/EH OEM Manual

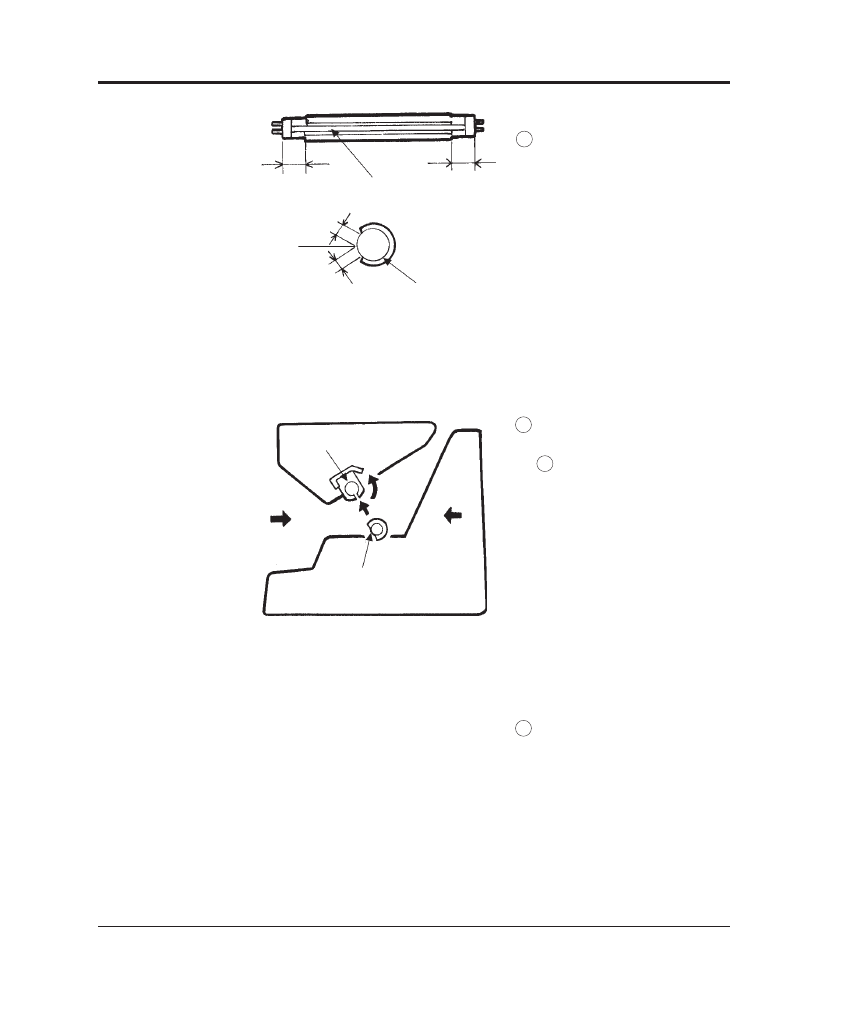

6 Re-attach a new lamp to the
C-shaped heater.
Note:
Position the lamp so that the
following lengths are the same:
a
1
= a
2
b
1
= b
2
Window: transparent part
a
1
a
2
b
1
Window
Cross-sectional view of lamp
and heater
b
2
Heater
8 Close the upper transport
unit. (See page 4-2)
Window
Front
7 To re-install lamp/heater,
reverse procedures in item
4 above.
Note:
When re-stalling the lamp,
make sure to rotate the lamp in
the direction as shown in the
left figure.
Rear
Socket
