INTERFACE
SPECIFICATIONS

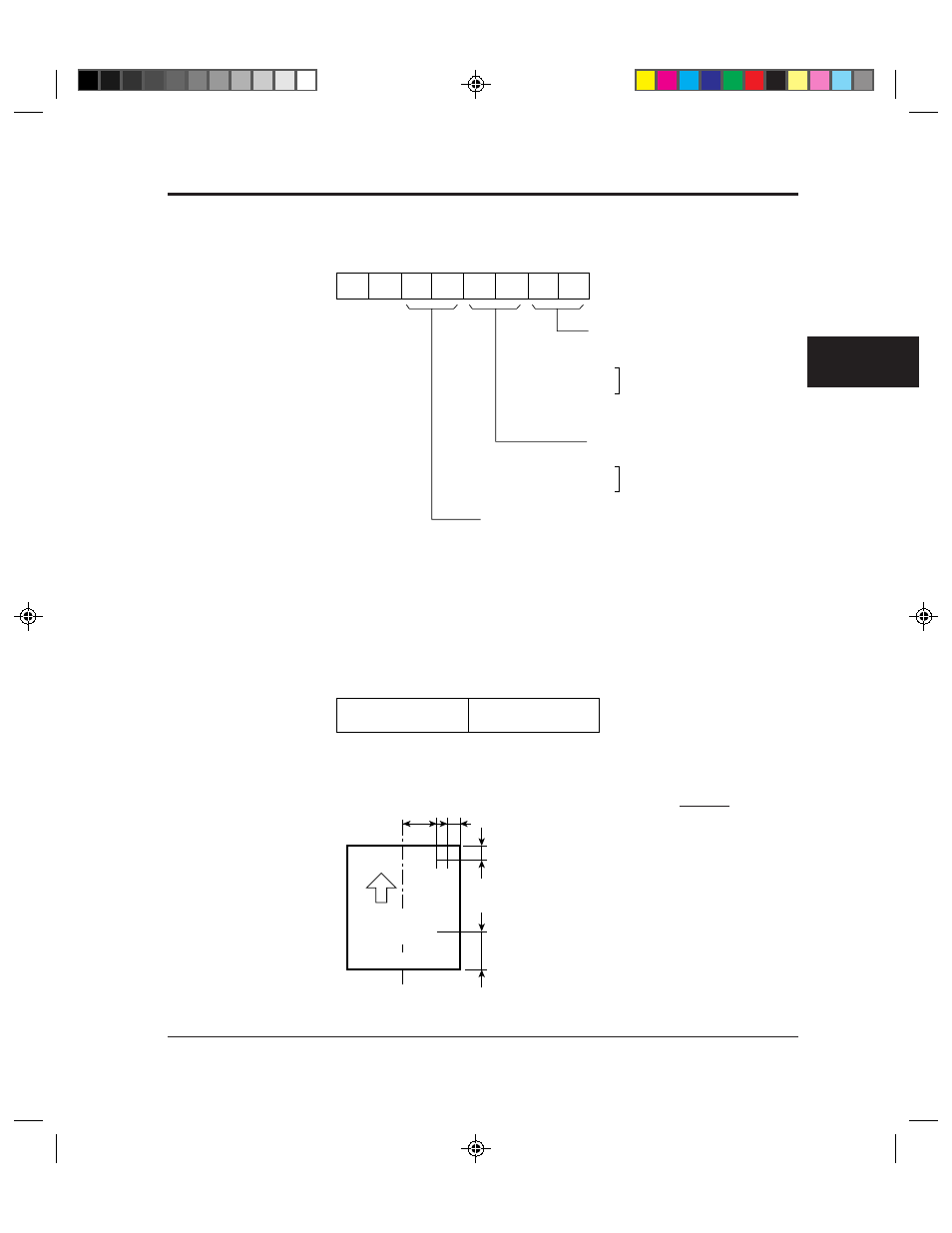

Print information II register
b7
b0
Character row direction
00 : Vertical downward
direction
↓
01:
10: Not defined
11:
Character rotation
00: 90
°
01:
10: Not defined
11:
Setting initial number
0X: Depends on the operator panel
specification.
10: Initial value of the number will not be set.
11: Initial value of the number will be set. (*1)
Print position Y register
b7
b7
b0
b0
MSB
LSB
Specify the value in binary code in unit of 1/400 inch.
c
ABC···T
d
B
A
Paper feed
direction
(Back-side)
Center of
the paper
*1: Set initial number again after changing counting number
register.
Print position Y=
C–20
0.0635
(unit of c: mm)
(1/400 inch=0.0635 mm)
Limit of the print position
A > 5 mm
B > 28 mm
c > 20 mm
d > 5 mm
