M3099EX/EH OEM Manual 3-45
INTERFACE
SPECIFICATIONS

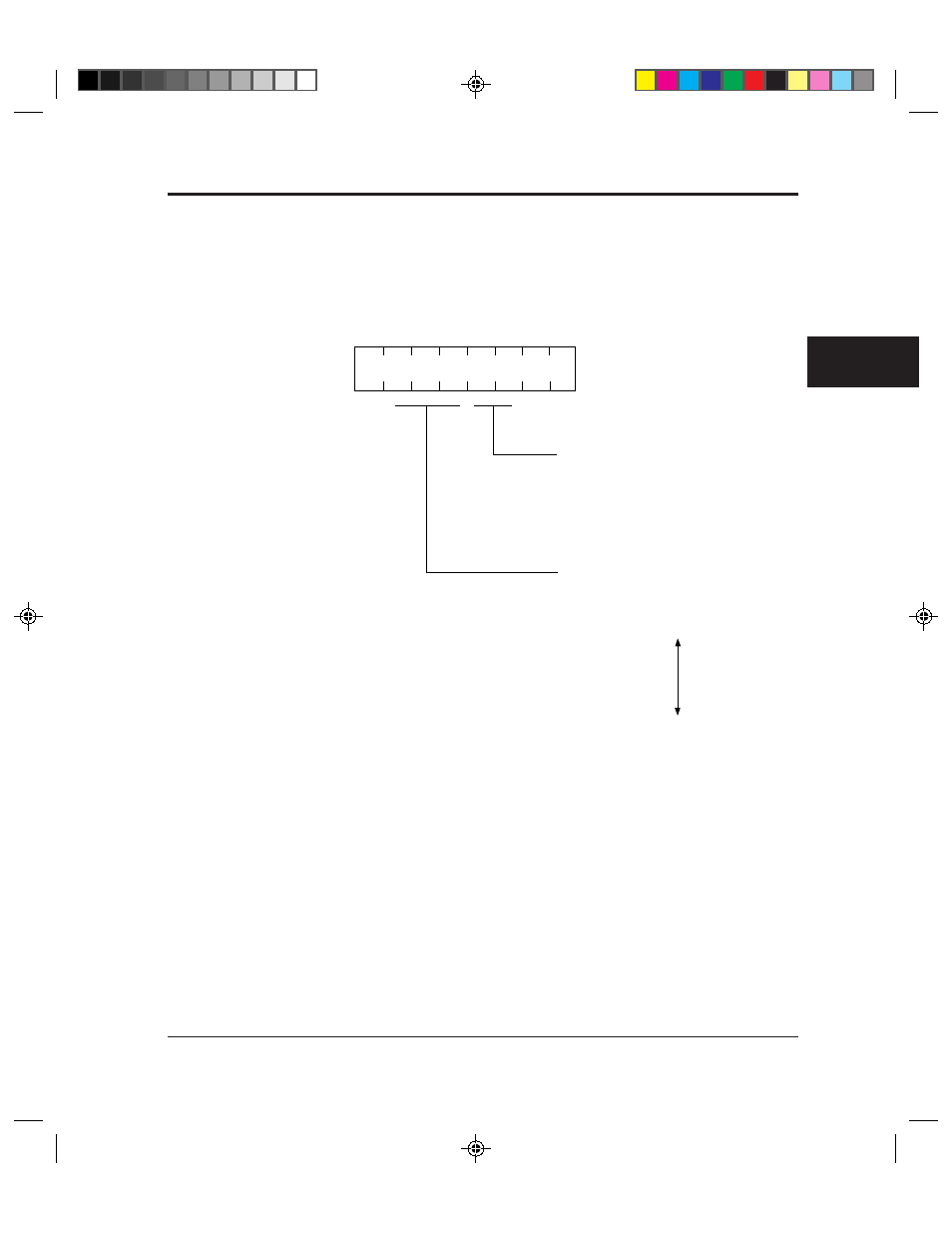

Image control register A#4, B#4
X’00' is set when the power is turned on or when a CLEAR
command is issued for initialization.
b7 b0
Simplified dynamic threshold specification
0 x : Not operation
1 0 : Simplified DTC invalid
1 1 : Simplified DTC valid
Simplified DTC mode number specification
0 0 0 : Default
0 0 1 : Small
0 1 0 :
0 1 1 :
1 0 0 :
1 0 1 :
1 1 0 :
1 1 1 : Large
#4 0 0
Variance
rate of
threshold
level
Eight parameter (000 to 111) can be specified as variance rate.
