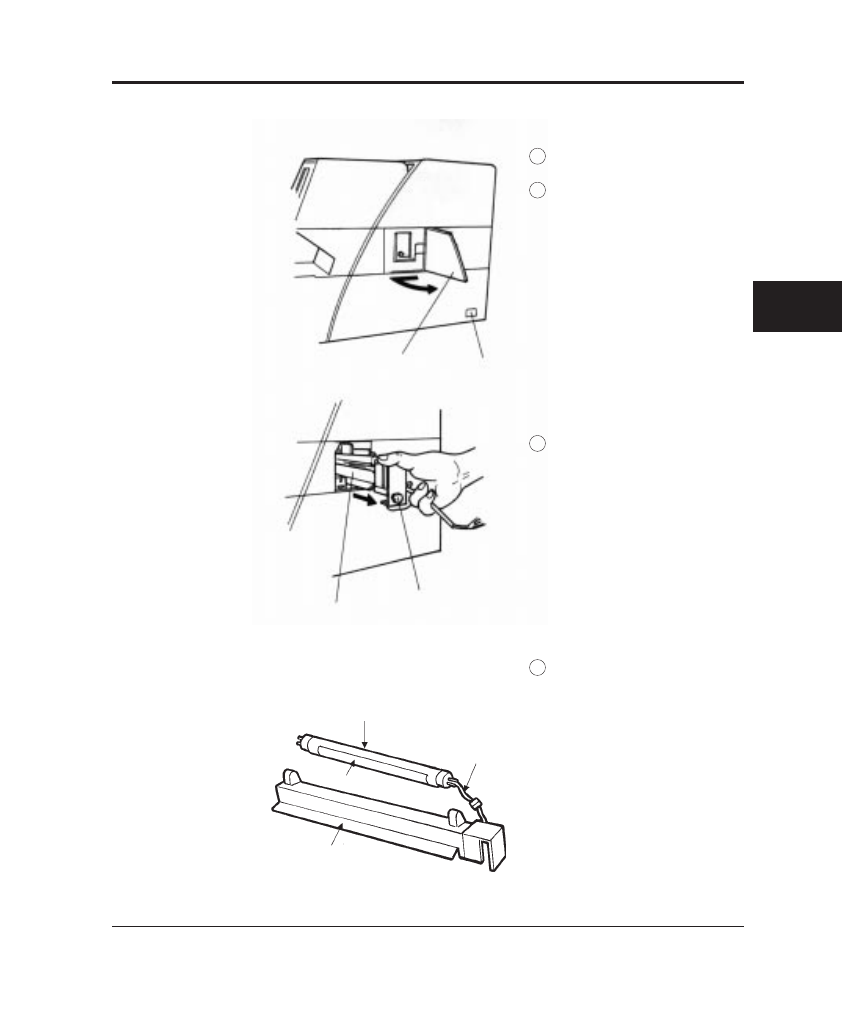

Replacing the back-side lamp
1 Turn off the power switch.
2 Slide and open the side
cover (small cover on the
center of the right cover).
3 Turn the thumb screw to
unlock the lamp unit and
pull the unit out of the
machine.
Wire of the heater
Lamp
Lamp unit
Heater
Side cover Power
switch
Lamp unit
Thumb screw
4 Rotate the lamp so that the
two terminals on each end
align with the exit slot on
the lamp socket.
Maintain the alignment and
remove the lamp from the
lamp sockets.
CAUTION
Be careful not to pull the wire
of the heater hard.
