3-34

M3099EX/EH OEM Manual

• These values must be specified in binary in unit of 1/400-inch.

Note: 1. When the picking is specified, only a specified area of the

document is read. However, when the ADF is used, and
the document length is shorter than the specified area,
read operation is stopped at the edge of document.

2. When the specified area is larger than the double-letter

size, read area specification error occurs.

3. When the jam detection bit (control register #2) is "1", a

setting of Y2 is ignored.

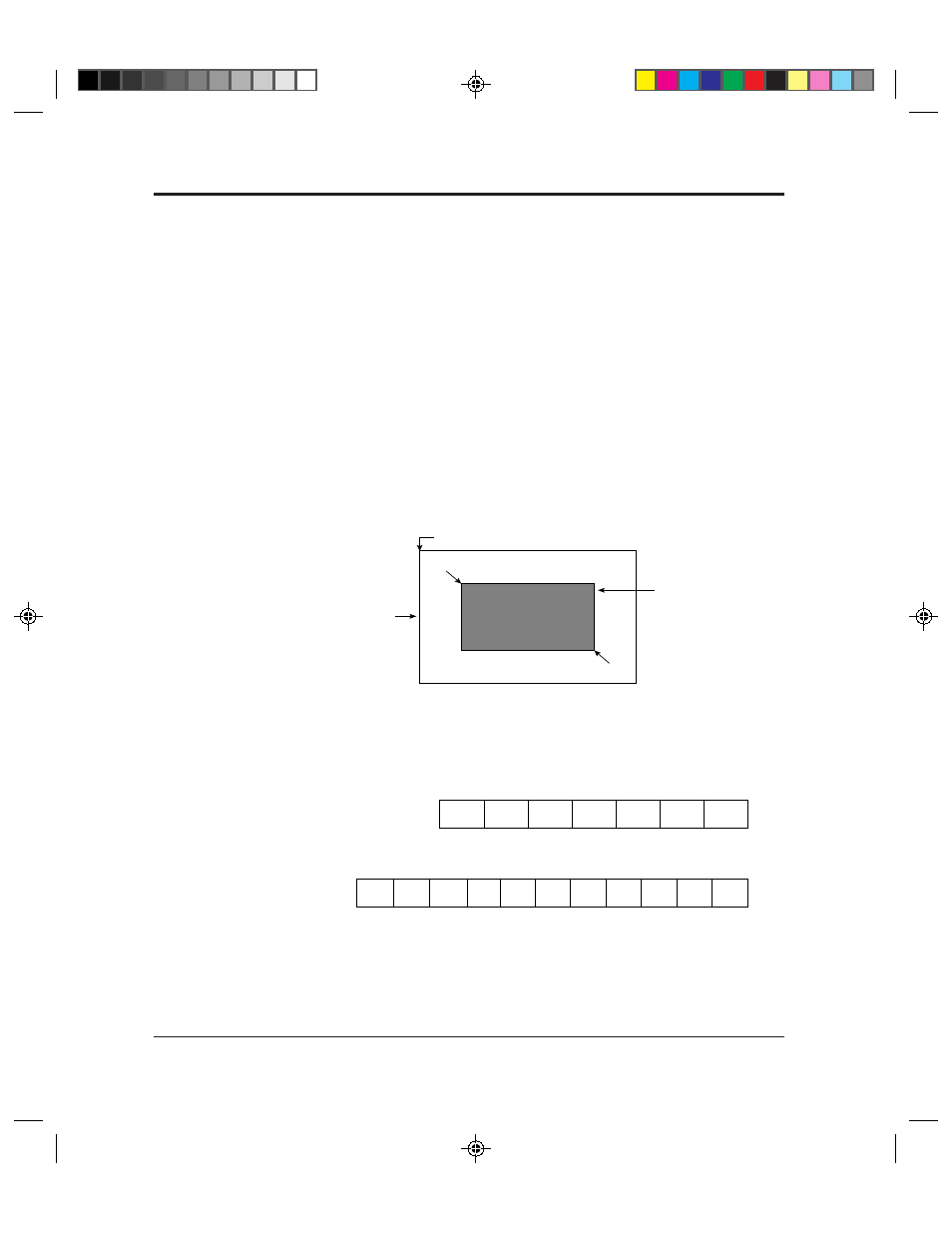

Picking is specified when the scanner is required to read a special area
as shown below.

Reference point

Document
board

Area to be scanned

Front side of scanner

Picking is applied when bit 5 the control register #5 is "1" and the
address of points A and B is specified in the control registers #10 to
#17.

[Example]

CNT

CMD

REG.
No.

#10

#11

#12

#13

(#14)

(#15)

(#16)

(#17)

#17

#16

#15

#14

#13

#12

#11

#10

REG.
No.

CMD

CNT

Note: When these registers are specified, four consecutive registers

(#10 to #13 or #14 to #17) must be specified.
