Using the Defined Area Option (continued)
Step Procedure
5 a. Print the card design and observe how the image is oriented on the card as
it ejects from the Printer. (Note: The location of a defined area is based on
the card orientation as it exits the Printer.)
b. Measure the defined area location based on the printed card. (Note: If
selecting the Rotate Front 180 Degrees option, the image will appear
upside down as it exits the Printer.)

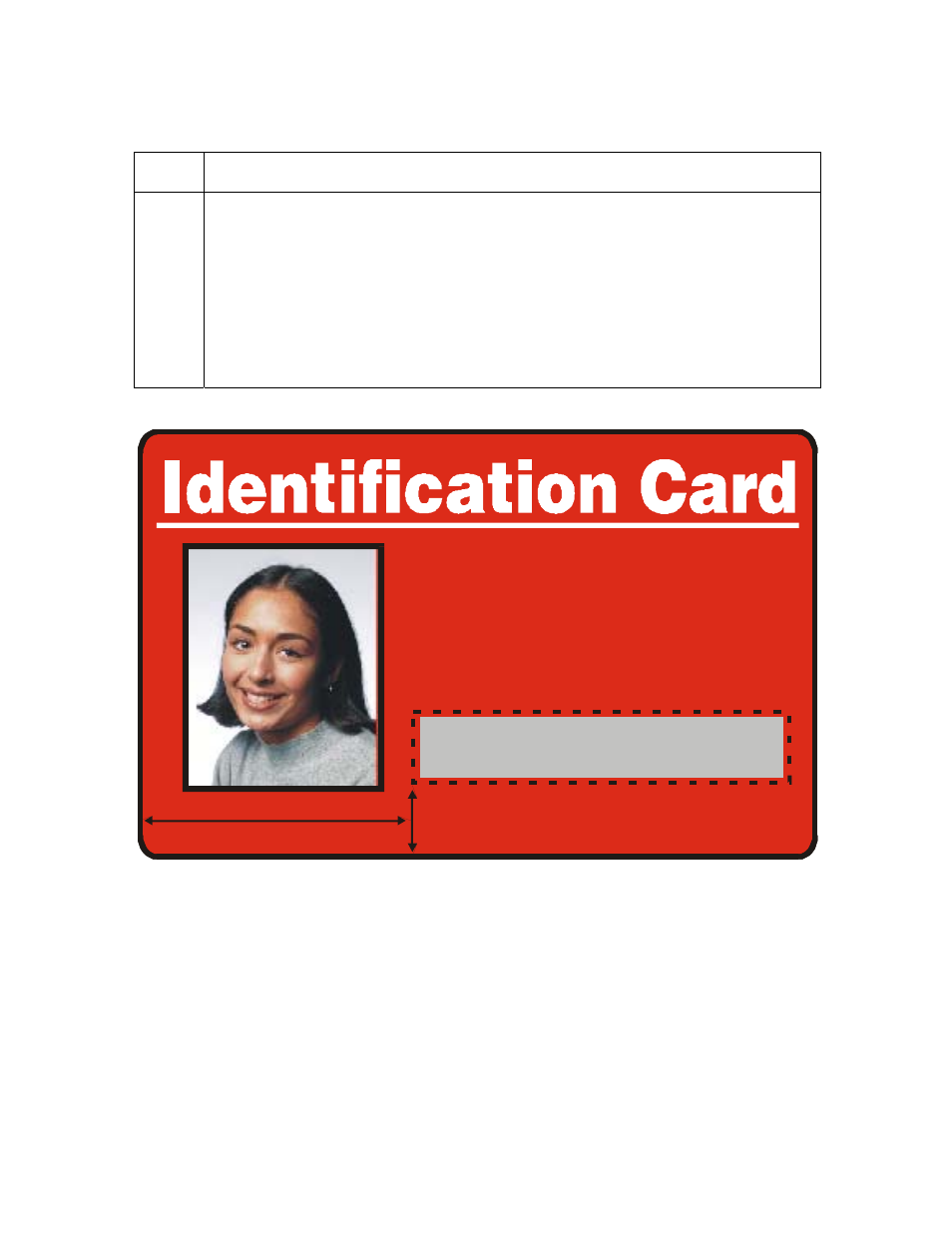

c. Position the defined area opposite to the measurement of the onscreen
card design (which will appear right side up).
Y=0.3“ X=1.3“
Karen Atkins
Access Level-2
ID# 1234478
