2-10 AlphaServer DS20L User’s Guide

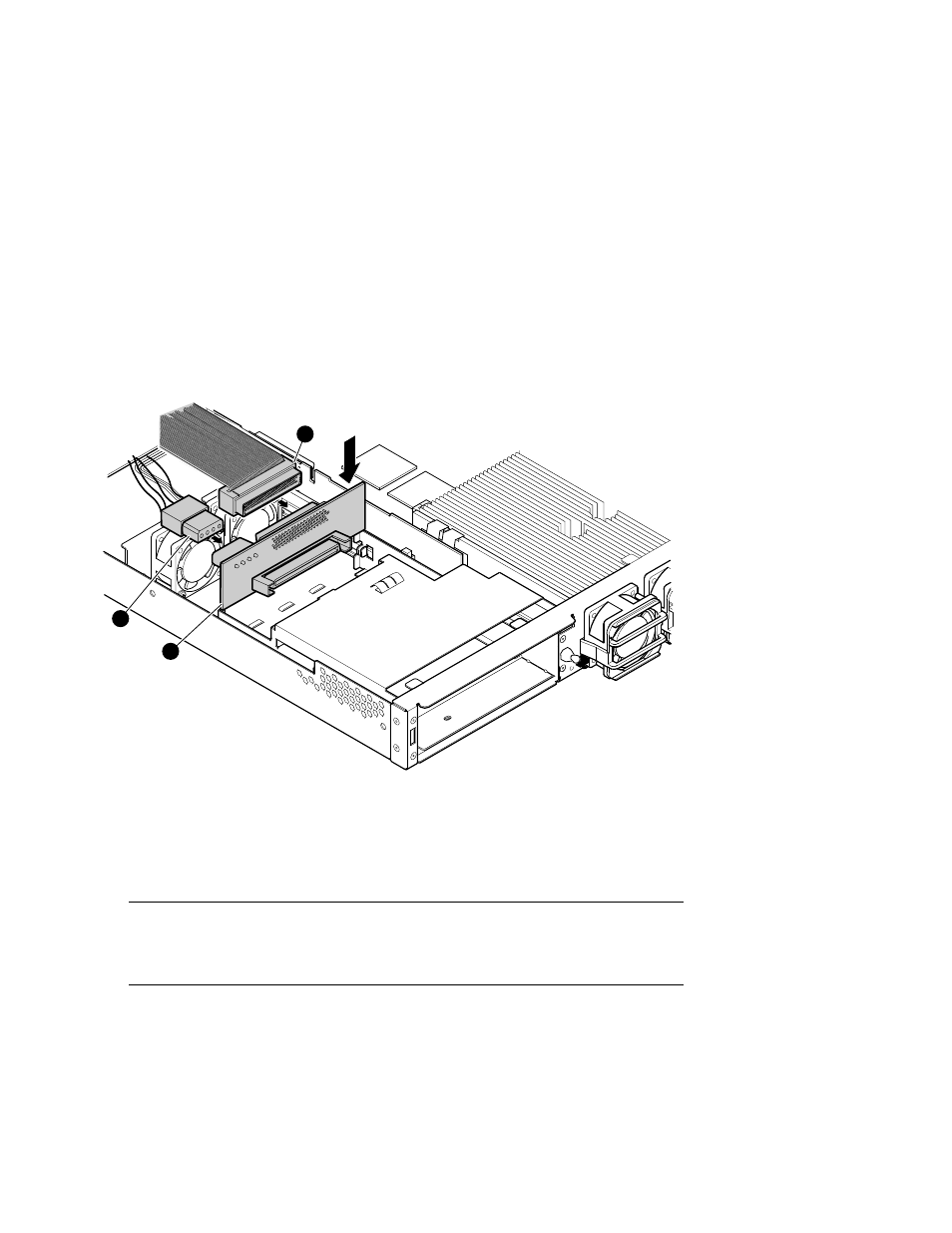

Figure 2-8 Installing the SCSI Backplane
MR0368
1
3
2
3. Lift the PCI riser and route the SCSI hard drive cable (17-05034-06) under
the notch in the PCI riser card by following these steps.
a. Refer to Figure 2-7 to remove any PCI option modules, then refer to
Figure 2-9 for the remainder of these procedures.
CAUTION: Do not remove the PCI fan bracket
X
during these procedures.
It holds and supports the motherbard in place, making it easier
to unplug and lift the PCI riser.
b. Remove both screws attaching the PCI riser to its rear bracket
Y.
c. Pull up on the entire PCI riser
Z
and slide it up and lift it free of the
enclosure.
