HP Vectra VE 5/series 2 User Manual
Page 64
Remove; the
drive tray if
installing a
5.25-inch drive

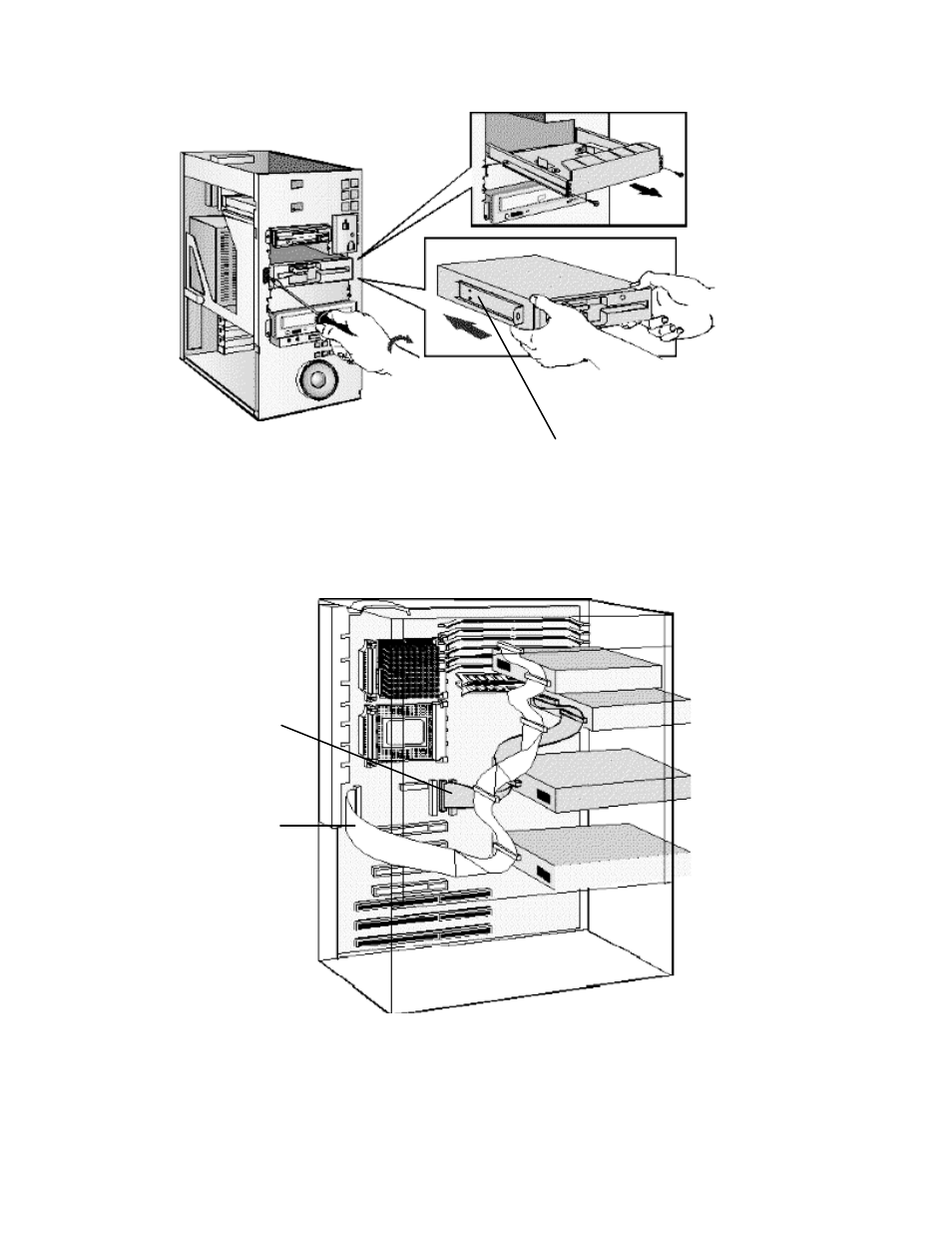

Slide the drive into position
Mounting Rails
Secure the drive
in position
5
Slide the drive into the shelf.
6
Secure the drive in position using the screws provided with the drive.
7
Locate the appropriate data cable for the device
IDE CD-ROM drives
should be connected
to the Secondary IDE
Channel cable (this
cable is connected to
the red connector on
the system board)
NOTE
The IDE data cables
are supplied
separately in a bag
with your PC
Flexible Disk
Drive Cable
SCSI devices can
be connected to
any free connector
on the SCSI cable
8
Connect the data and power cables to the rear of the device. (The connectors are shaped
to go in one way only.)
