HP Vectra VE 5/series 2 User Manual
Page 61

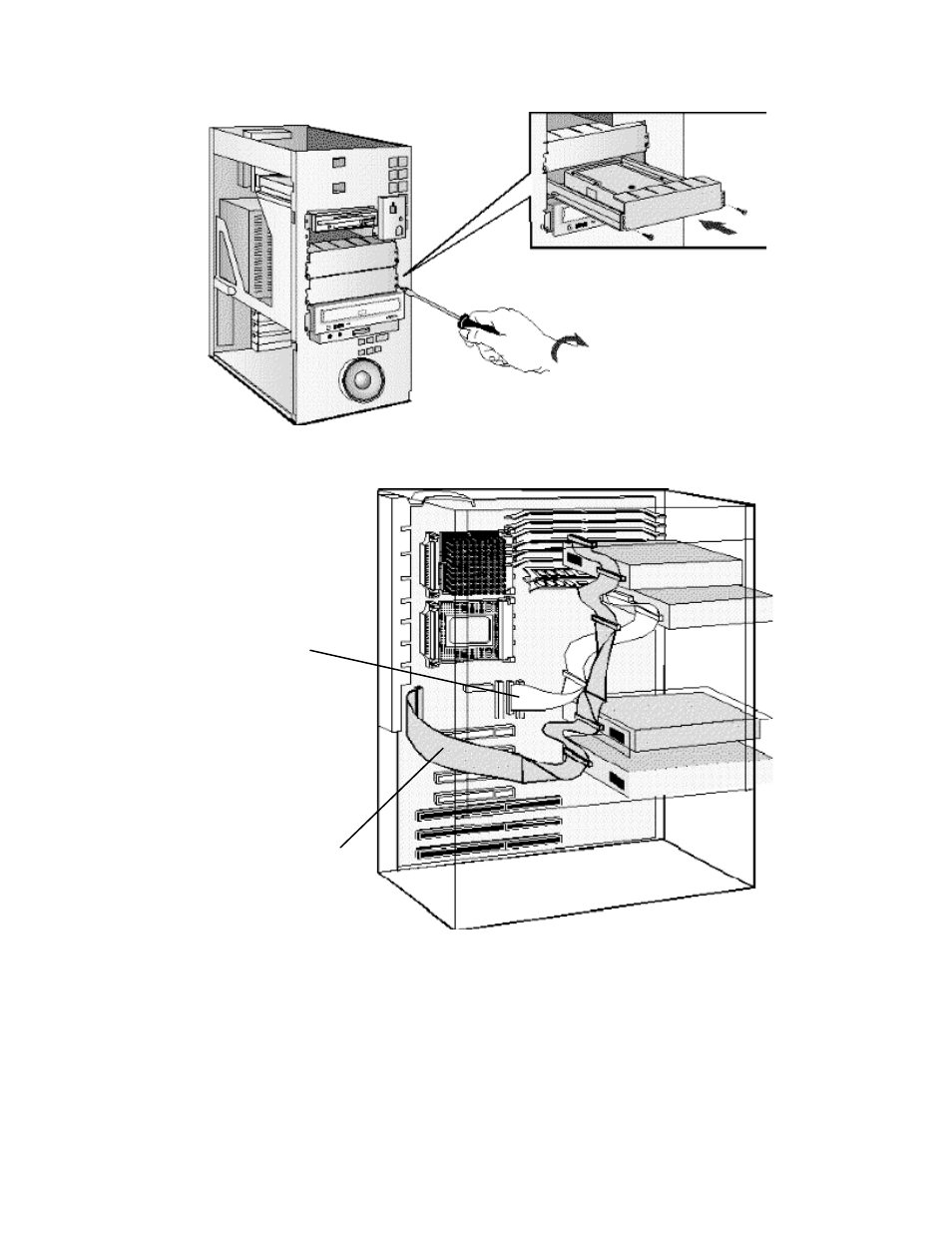

Slide the drive tray into
the drive shelf
7
Locate the appropriate data cable for the disk drive.
IDE drives should be
connected to the
Primary IDE Channel
cable (this cable is
connected to the grey
connector on the
system board)
NOTE
The IDE data cables
are in a bag supplied
separately w ith your
PC
SCSI drives can be
connected to any free
connector on the
SCSI cable
8
Connect the data and power cables to the rear of the device. (The connectors are shaped
to go in one way only.)
