HP Vectra VE 5/series 2 User Manual
Page 53

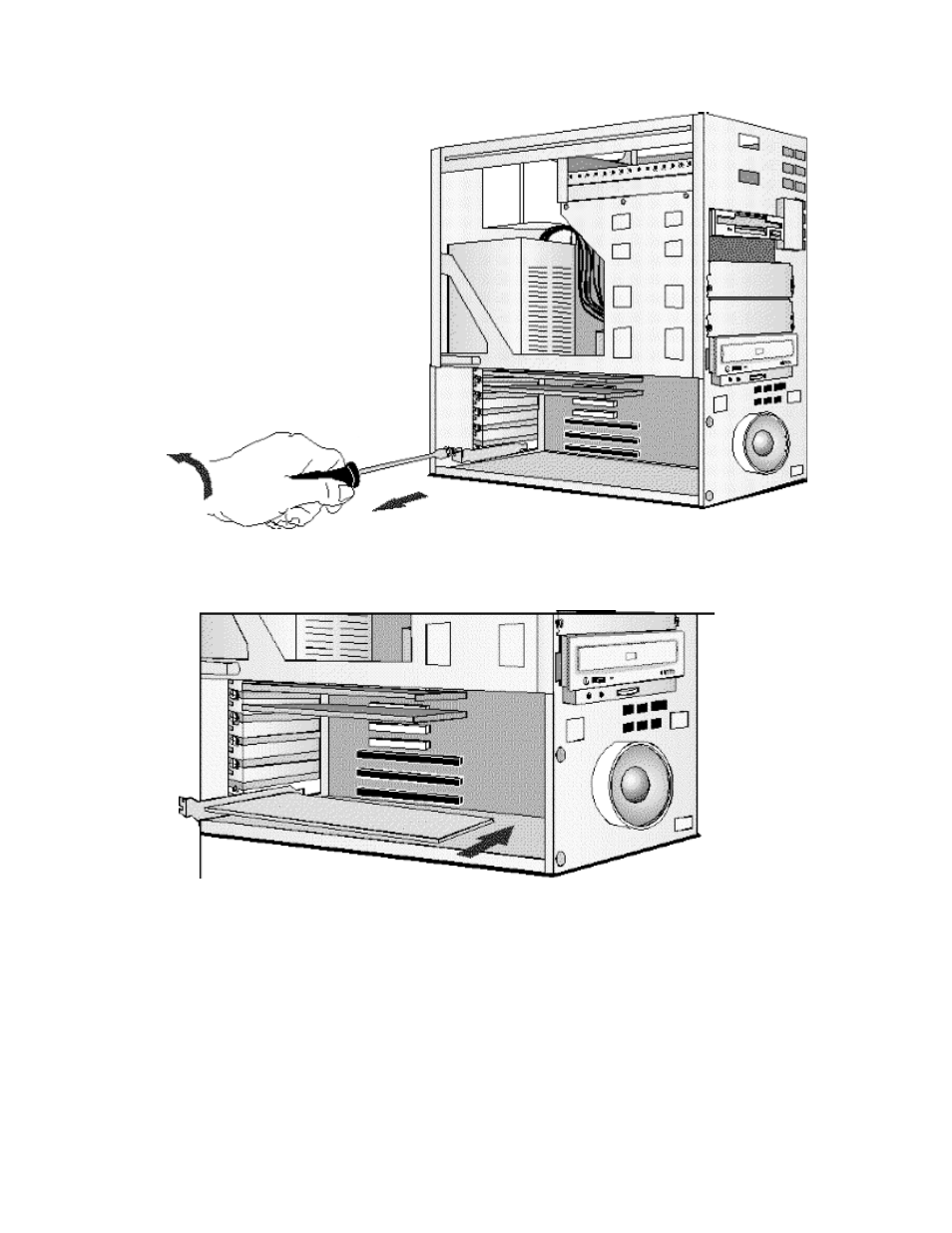

Unscrew and remove
the slot cover
6
Hold the board horizontally by its “top” edge. Slide it into the board guide of the chosen
slot. Do
not
bend the board.
Slide the
accessory
board into
position
7
Align the board’s connector with the slot’s socket. Firmly press the board into the socket.
Ensure the board’s connector engages
completely
with the socket and does not touch
components on other boards.
8
Secure the board by replacing the slot cover screw.
If you loosened the screws on adjacent slots, tighten them.
