Chapter 3 Function and Performance Specifications
3-10

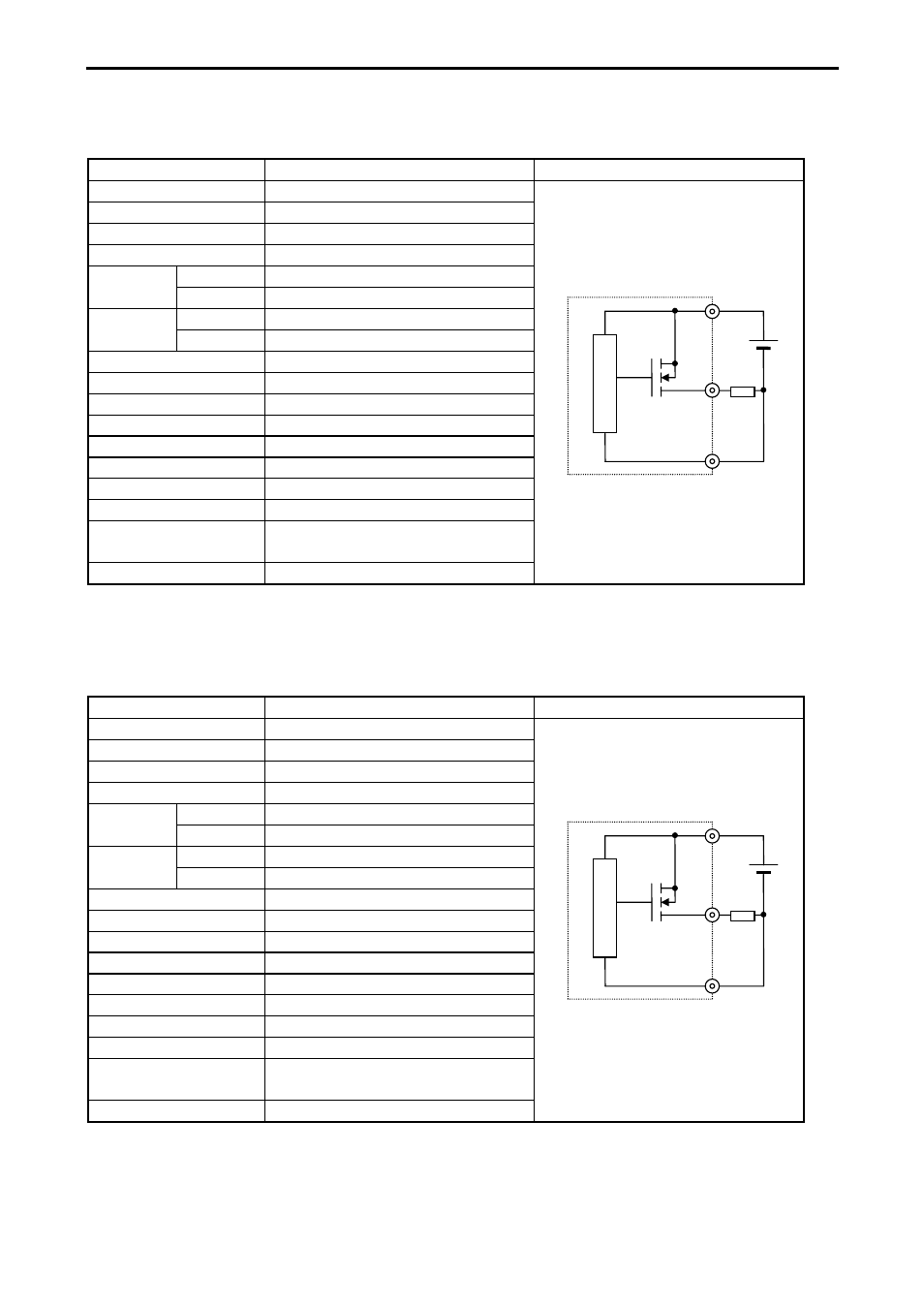

(4) DC output (ESCP type): HCDC-High Current
(Y100,Y101 of EH-D14DTPS, Y100-Y103 of D28DTPS)
Y*016,Y*017 of EH-EDTPS, Y*016-Y*019 of EH-D28EDTPS)
Item Specification Circuit diagram
Output specification Transistor output
Rated load voltage 24/12 V DC (+10 %, -15 %)
Minimum switching current 10 mA
Leak current 0.1 mA (max)
1 circuit 1 A Maximum
load current
1 common 3 A
OFF → ON 0.05 ms (max) 24 V DC 0.2A Output
response time ON
→ OFF 0.05 ms (max) 24 V DC 0.2A
Number of output points See Chapter 4.
Number of common See Chapter 4.
Surge removing circuit None
Fuse None
Insulation system Photocoupler insulation
Output display LED (green)
External connection Removable type screw terminal block (M3)
Externally supplied power *1 30 to 12 V DC
Insulation 1500 V or more (external-internal)
500 V or more (external-external)
Output voltage drop 0.3 V DC (max)
*1: It is necessary to supply 12 to 30 V DC between the V and C terminals externally. See “4.6 Terminal Layout and Wiring.”
(5) DC output (ESCP type): LCDC-Low Current
(Y102-Y105 of EH-D14DTPS, Y104-Y111 of EH-D28DTPS
Y*018-Y*021 of EH-D14EDTPS, Y*020-Y*027 of EH-D28EDTPS)
Item Specification Circuit diagram
Output specification Transistor output
Rated load voltage 24/12 V DC (+10 %, -15 %)
Minimum switching current 10 mA
Leak current 0.1 mA (max)
1 circuit 0.7 A Maximum
load current
1 common 3 A
OFF → ON 0.5 ms (max) 24 V DC 0.2A Output
response time ON
→ OFF 0.5 ms (max) 24 V DC 0.2A
Number of output points See Chapter 4.
Number of common See Chapter 4.
Surge removing circuit None
Fuse None
Insulation system Photocoupler insulation
Output display LED (green)
External connection Removable type screw terminal block (M3)
Externally supplied power *1 30 to 12 V DC
Insulation 1500 V or more (external-internal)
500 V or more (external-external)
Output voltage drop 0.3 V DC (max)
*1: It is necessary to supply 12 to 30 V DC between the V and C terminals externally. See “4.6 Terminal Layout and Wiring.”
V0
0
C0
Source type (EH-D**DTPS)
In
tern
al circu
it
V0
0
C0
Source type (EH-D**DTPS)
In
tern
al circu
it
