Installation and Configuration
28 SSL1016 Tape Autoloader Reference Guide
c. Hook the curved tabs around the rear rail of the rack 1.
d. Align the rail so that the holes are over the previously installed clip
nuts 2.
e. Secure with two screws 3.
f. Attach the other optional mounting bracket using steps b through e.

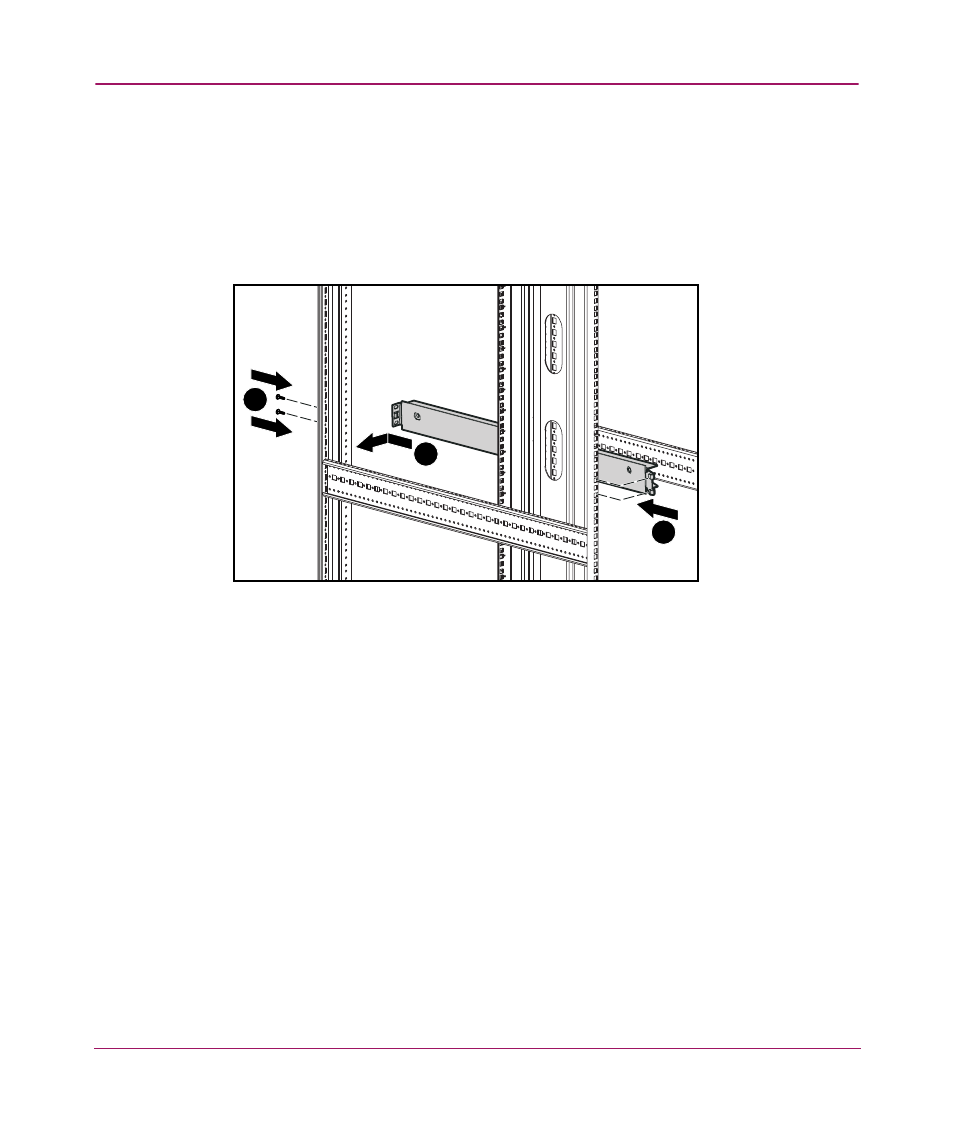

Figure 7: Installing the optional installation rails
1
2
3
