Rear View
The fans and connection ports are visible on the back of the autoloader.

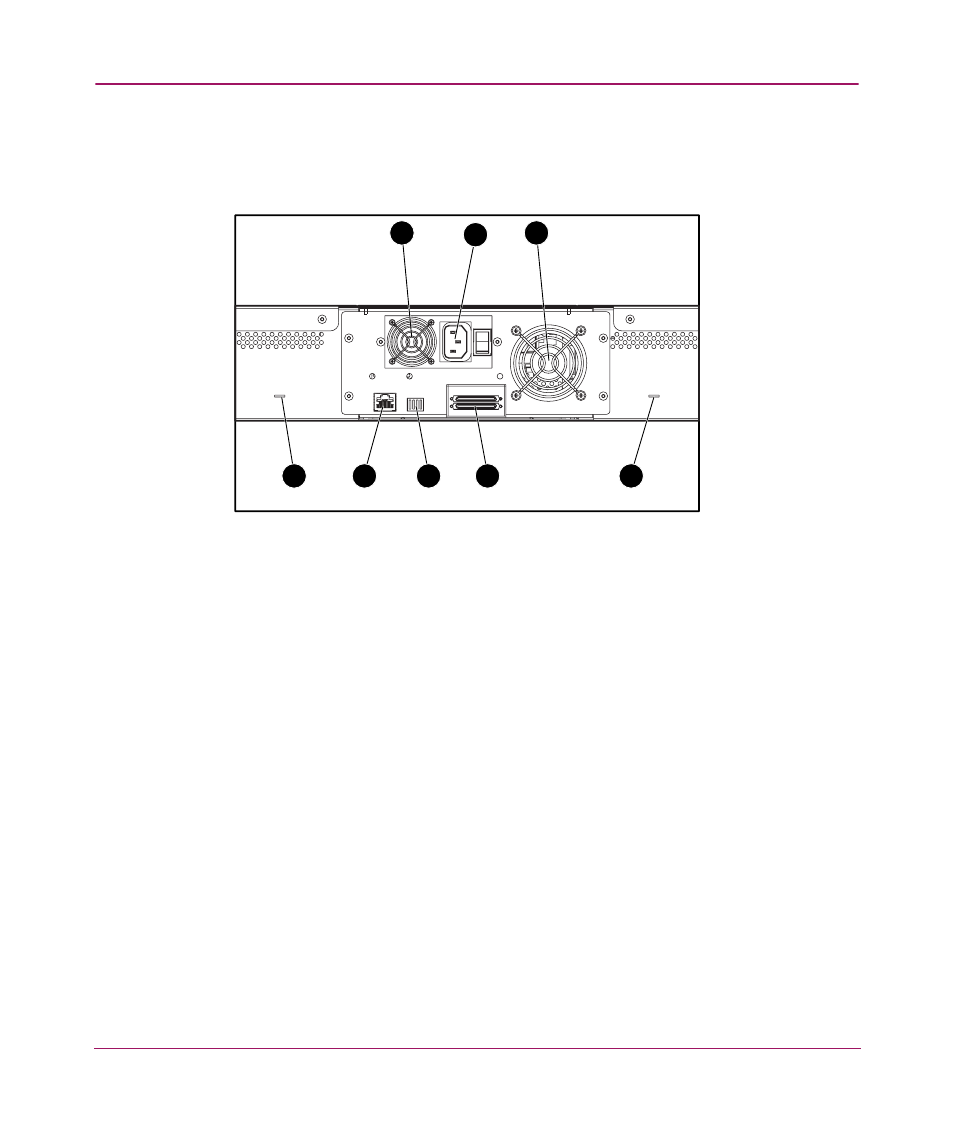

Figure 4: Autoloader rear view
Cooling Fans
The autoloader has a system cooling fan, plus a second fan to cool the power
supply. These fans maintain the acceptable temperature range for the tape drive
path and all internal electronics. See Appendix C, “Specifications,” for details
about required specifications.
AC Power Plug
The autoloader requires a 110/220 volts AC power connection.
1
AC power plug
5
Switches (factory use only)
2
Fan
6
SCSI connectors
3
Manual magazine eject slot 7 Manual magazine eject slot
4
Ethernet connector
2 2 1
4 5 3 6 7
